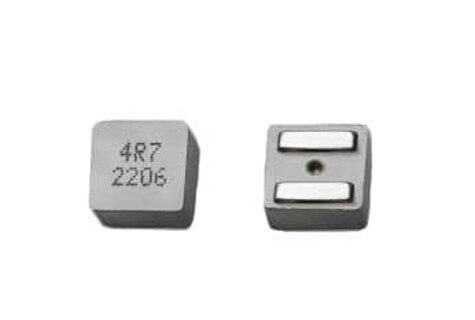

EXLA1V Series
Power Inductors - SMD IND CMMD 7x7x3 2.2uH 7.0A 2PAD SMT
Manufacturer: Eaton - Electronics Division
Catalog
Power Inductors - SMD IND CMMD 7x7x3 2.2uH 7.0A 2PAD SMT
Beta
⌘K
Power Inductors - SMD IND CMMD 7x7x3 2.2uH 7.0A 2PAD SMT
Power Inductors - SMD IND CMMD 7x7x3 2.2uH 7.0A 2PAD SMT
Power Inductors - SMD IND CMMD 7x7x3 2.2uH 7.0A 2PAD SMT
| Part | Ratings | Inductance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Tolerance | Mounting Type | Material - Core | Current - Saturation (Isat) | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current Rating (Amps) | Shielding | Type | Inductance Frequency - Test | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | AEC-Q200 | 2.2 µH | 0.272 in | 7.2 mm | 6.9 mm | 0.283 " | 20 % | Surface Mount | Alloy Powder | 11 A | 155 C | -55 C | Nonstandard | 0.122 in | 3.1 mm | 10 A | Shielded | Molded | 100 kHz | 12.2 mOhm |
 Eaton - Electronics Division | AEC-Q200 | 1.5 µH | 0.272 in | 7.2 mm | 6.9 mm | 0.283 " | 20 % | Surface Mount | Alloy Powder | 15.5 A | 155 C | -55 C | Nonstandard | 0.122 in | 3.1 mm | 15 A | Shielded | Molded | 100 kHz | 9.13 mOhm |
