21691 Series
Manufacturer: Pflitsch
Beta
⌘K

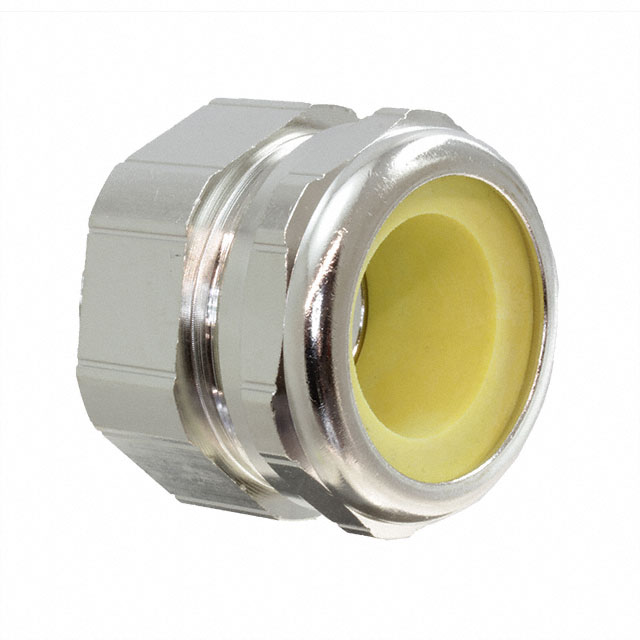

CABLE GLAND 23.88-27.94MM PG29
| Part | Thread Length | Thread Length | Ingress Protection | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Includes | Thread Size | Type | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) | Color | Material | Operating Temperature [Min] | Operating Temperature [Max] | Panel Hole Size | Panel Hole Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pflitsch | 0.31 " | 7.87 mm | IP68 - Dust Tight Waterproof NEMA 4X | 1.1 in | 27.94 mm | Sealing Ring | PG29 | Cable Gland | 0.94 in | 23.88 mm | Silver | Brass Nickel Plated | -40 C | 300 °C | 37.1 mm | 1.46 in |
