712RA Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

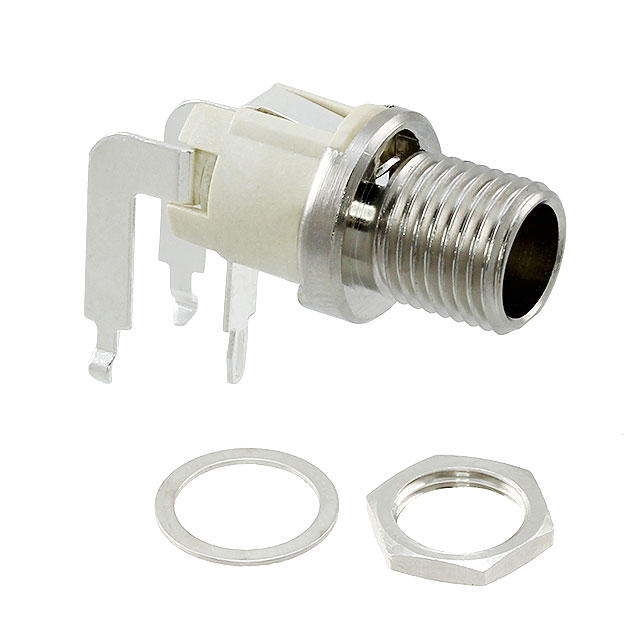

DC POWER CONNECTOR, HIGH TEMP, RIGHT ANGLE, JACK, 3 A, 2.5 MM, PANEL MOUNT, THROUGH HOLE
| Part | Body Color | Includes | Thread Size | Contact Material - Plating | Contact Material | Body Material | Housing Material | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Internal Switch(s) | Shielding | Features | Connector Type | Termination | Mounting Feature | Industry Recognized Mating Diameter [custom] | Industry Recognized Mating Diameter [custom] | Industry Recognized Mating Diameter [custom] | Industry Recognized Mating Diameter [custom] | Gender | Actual Diameter [diameter] | Actual Diameter [diameter] | Mounting Type | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Silver White | 1 Nut 1 Washer 3 pcs - 1 Connector | 5/16"-32 | Nickel | Copper Alloy | Copper Alloy | Thermoplastic | 2 | 3 | Single Switch | Unshielded | Mounting Hardware Thread Lock | Jack | Solder Eyelet(s) | Bulkhead - Front Side Nut | 0.217 in | 2.5 mm | 5.5 mm | 0.098 in | Male | 2.5 mm 5.5 mm | 0.098 in 0.217 in | Right Angle Through Hole | 24 VDC |
