SMS12 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

SMS STRAIN RELIEF HOOD

Part	For Use With/Related Products	Accessory Type	Number of Positions	Contact Material	Contact Shape	Insulation Material	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Color	Termination	Insulation Height	Features	Ingress Protection	Mounting Type	Contact Length - Post	Current Rating	Contact Type	Pitch - Mating	Material Flammability Rating	Row Spacing - Mating	Number of Rows	Contact Finish - Mating	Connector Type	Style	Fastening Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Note	Contact Termination	Pitch	Color	Row Spacing	Shrouding	Contact Length - Mating
Amphenol Aerospace Operations SMS12H1	SMS Series	Strain Relief	12

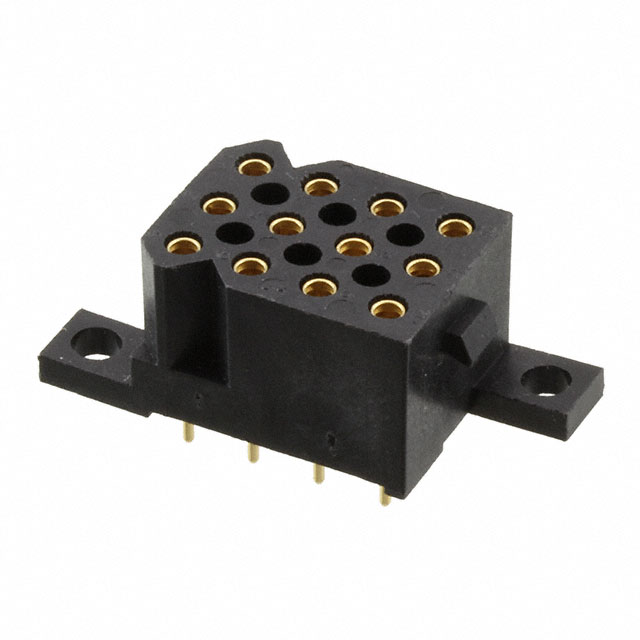

Amphenol Aerospace Operations SMS12GE3			12	Copper Alloy	Circular	Glass Filled Thermoplastic	-55 °C	105 °C	Black	Solder	0.528 in	Mounting Flange	IP40	Through Hole	0.134 in	7.5 A	Female Socket	0.2 in	UL94 V-0	0.2 in	4	Gold	Receptacle	Board Board or Cable	Locking Ramp	All	16 µin
Amphenol Aerospace Operations SMS12P-1			12			Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C						Free Hanging (In-Line)			Male Pin				3		Plug		Latch Holder			Contacts Not Included	Crimp	5.08 mm	Black	0.2 in
Amphenol Aerospace Operations SMS12R-1			12			Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C						Panel Mount Snap-In			Female Socket				3		Receptacle		Latch Lock			Contacts Not Included	Crimp	5.08 mm	Black	0.2 in

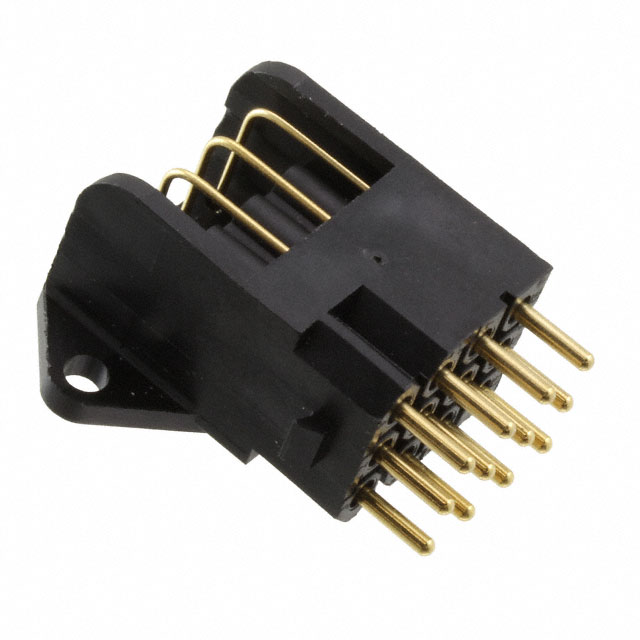

Amphenol Aerospace Operations SMS12GE6			12	Brass	Circular	Glass Filled Polyester	-55 °C	105 °C	Black	Solder	0.677 in	Mounting Flange	IP40	Right Angle Through Hole	0.177 in	7.5 A	Male Pin	0.2 in	UL94 V-0	0.2 in	4	Gold	Header	Board Cable/Wire	Locking Ramp	All	16 µin						Unshrouded	0.28 in
Amphenol Aerospace Operations SMS12GE5			12	Copper Alloy	Circular	Glass Filled Thermoplastic	-55 °C	105 °C	Black	Solder	0.677 in	Mounting Flange	IP40	Right Angle Through Hole	0.177 in	7.5 A	Female Socket	0.2 in	UL94 V-0	0.2 in	4	Gold	Receptacle	Board Board or Cable	Locking Ramp	All	16 µin
