151013 Series

Manufacturer: Molex

Catalog

2.00MM PITCH, MILLI-GRID BMI PCB HEADER, DUAL ROW, VERTICAL, THROUGH HOLE, 4 CIRCUITS, 0.38ΜM GOLD (AU) PLATING, 3.00MM TAIL LENGTH, TUBE, LEAD-FREE

Part	Fastening Type	Material Flammability Rating	Number of Positions	Insulation Height	Insulation Height	Termination	Features	Contact Length - Post	Contact Length - Post	Number of Rows	Style	Contact Finish - Post	Applications	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Insulation Color	Contact Type	Contact Material	Connector Type	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Current Rating (Amps)

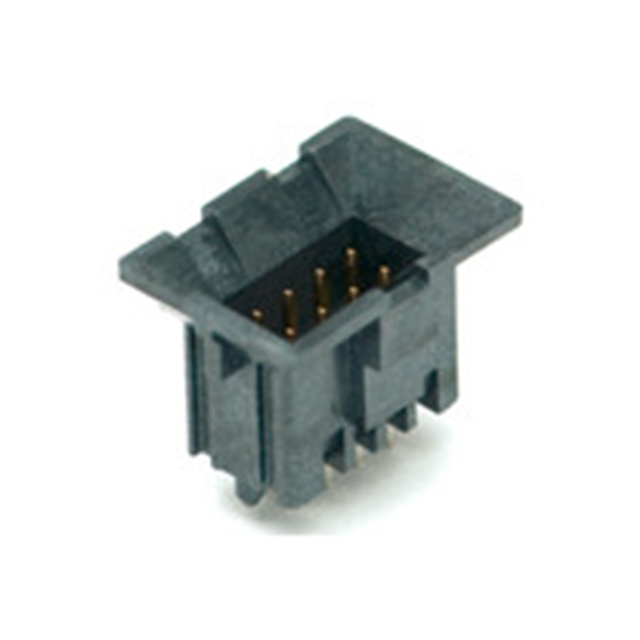

Molex 1510133204	Latch Holder	UL94 V-0	4	0.408 in	10.36 mm	Solder	Blind Mating Board Guide	0.118 in	3 mm	2	Board to Cable/Wire	Tin	Automotive General Purpose Telecommunications	Through Hole	0.079 in	2 mm	Shrouded - 4 Wall	Gold	1.27 µm	50 µin	15 µin	0.38 µm	Square	Black	Male Pin	Phosphor Bronze	Header	All	0.079 in	2 mm
Molex 1510133216	Latch Holder	UL94 V-0		0.408 in	10.36 mm	Solder	Blind Mating Board Guide	0.118 in	3 mm	2	Board to Cable/Wire	Tin	Automotive General Purpose Telecommunications	Through Hole	0.079 in	2 mm	Shrouded - 4 Wall	Gold	1.27 µm	50 µin	15 µin	0.38 µm	Square	Black	Male Pin	Phosphor Bronze	Header	All	0.079 in	2 mm	16
Molex 1510132018	Latch Holder	UL94 V-0	18	0.408 in	10.36 mm	Solder	Blind Mating Board Guide	0.102 in	2.6 mm	2	Board to Cable/Wire	Tin	Automotive General Purpose Telecommunications	Through Hole	0.079 in	2 mm	Shrouded - 4 Wall	Gold	1.27 µm	50 µin	30 Áin	0.76 Ám	Square	Black	Male Pin	Phosphor Bronze	Header	All	0.079 in	2 mm		-40 °C	105 ░C	125 VDC	2.5 A
Molex 1510133012	Latch Holder	UL94 V-0	12	0.408 in	10.36 mm	Solder	Blind Mating Board Guide	0.102 in	2.6 mm	2	Board to Cable/Wire	Tin	Automotive General Purpose Telecommunications	Through Hole	0.079 in	2 mm	Shrouded - 4 Wall	Gold	1.27 µm	50 µin	15 µin	0.38 µm	Square	Black	Male Pin	Phosphor Bronze	Header	All	0.079 in	2 mm		-40 °C	105 ░C	125 VDC	2.5 A
Molex 1510132020	Latch Holder	UL94 V-0	20	0.408 in	10.36 mm	Solder	Blind Mating Board Guide	0.102 in	2.6 mm	2	Board to Cable/Wire	Tin	Automotive General Purpose Telecommunications	Through Hole	0.079 in	2 mm	Shrouded - 4 Wall	Gold	1.27 µm	50 µin	30 Áin	0.76 Ám	Square	Black	Male Pin	Phosphor Bronze	Header	All	0.079 in	2 mm		-40 °C	105 ░C	125 VDC	2.5 A

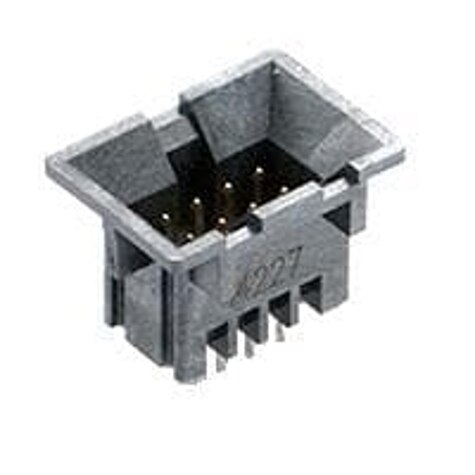

Molex 1510133016	Push-Pull	UL94 V-0		0.408 in	10.36 mm	Solder	Board Guide	0.102 in	2.6 mm	2	Board to Cable/Wire	Tin		Through Hole	0.079 in	2 mm	Shrouded - 4 Wall	Gold	1.27 µm	50 µin	15 µin	0.38 µm	Square	Black	Male Pin	Phosphor Bronze	Header	All	0.079 in	2 mm	16	-40 °C	105 ░C	125 VAC	2 A
Molex 1510132006	Latch Holder	UL94 V-0	6	0.408 in	10.36 mm	Solder	Blind Mating Board Guide	0.102 in	2.6 mm	2	Board to Cable/Wire	Tin	Automotive General Purpose Telecommunications	Through Hole	0.079 in	2 mm	Shrouded - 4 Wall	Gold	1.27 µm	50 µin	30 Áin	0.76 Ám	Square	Black	Male Pin	Phosphor Bronze	Header	All	0.079 in	2 mm		-40 °C	105 ░C	125 VDC	2.5 A
Molex 1510135008	Latch Holder	UL94 V-0	8	0.408 in	10.36 mm	Solder	Board Guide	0.102 in	2.6 mm	2	Board to Cable/Wire	Tin		Through Hole	0.079 in	2 mm	Shrouded - 4 Wall	Gold	1.27 µm	50 µin	30 Áin	0.76 Ám	Square	Black	Male Pin	Phosphor Bronze	Header	All	0.079 in	2 mm		-40 °C	105 ░C	125 VDC	2 A
Molex 1510133218
Molex 1510133212	Latch Holder	UL94 V-0	12	0.408 in	10.36 mm	Solder	Blind Mating Board Guide	0.118 in	3 mm	2	Board to Cable/Wire	Tin	Automotive General Purpose Telecommunications	Through Hole	0.079 in	2 mm	Shrouded - 4 Wall	Gold	1.27 µm	50 µin	15 µin	0.38 µm	Square	Black	Male Pin	Phosphor Bronze	Header	All	0.079 in	2 mm
