SFP650 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

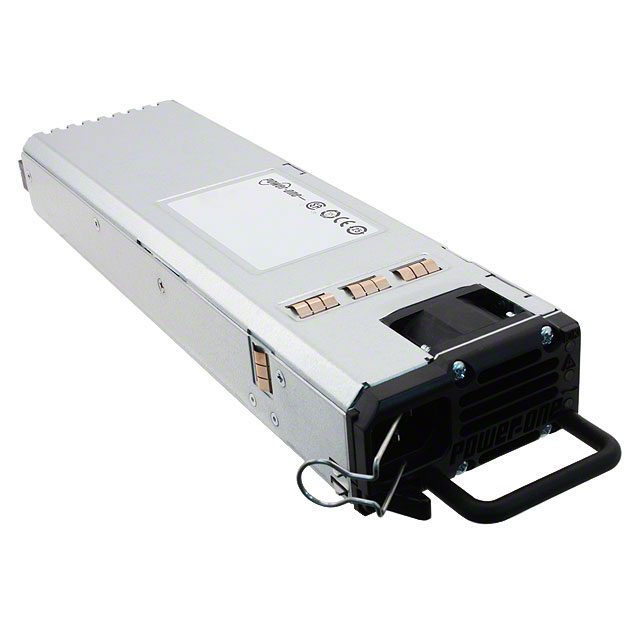

AC/DC CONVERTER 12V 650W
| Part | Minimum Load Required | Voltage - Input [Max] | Voltage - Input [Min] | Type | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Current - Output 1 | Features | Efficiency | Mounting Type | Voltage - Output 1 | Power (Watts) | Approval Agency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 264 VAC | 90 VAC | Front End | 50 °C | 0 °C | ITE (Commercial) | 53 A | Adjustable Output I2C Interface Load Sharing PFC Standby Output Universal Input | 86 % | Chassis Mount | 12 V | 650 W | CE | 1.57 " | 3.07 in | 40 mm | 314.5 mm | 78 mm | 12.38 in | 1 |
