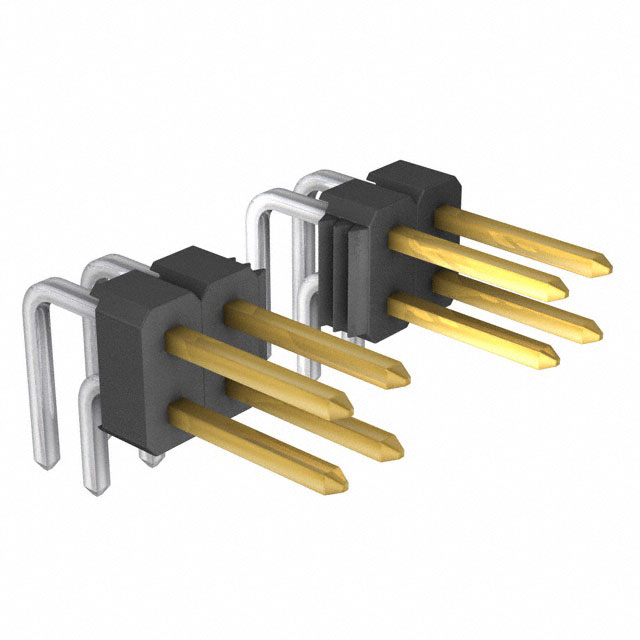

961224 Series

Catalog

CONN HEADER SMD 24POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Material Flammability Rating	Contact Finish - Post	Current Rating (Amps)	Contact Finish Thickness - Mating	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Number of Positions Loaded	Contact Material	Number of Rows [custom]	Shrouding	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Insulation Height	Insulation Height	Contact Type	Fastening Type	Contact Finish - Mating	Connector Type	Termination	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Features	Overall Contact Length [x]	Overall Contact Length [x]
3M Electronic Specialty 961224-6300-AR-TP	39.4 çin	1 çm	Surface Mount	UL94 V-0	Tin	2 A	Flash	24	0.1 in	2.54 mm	Square	All	Copper Alloy	2	Unshrouded	0.1 "	2.54 mm	0.21 in	5.33 mm	Thermoplastic	105 ░C	-25 °C	Black	0.098 "	2.5 mm	Male Pin	Push-Pull	Gold	Header	Solder
3M Electronic Specialty 961224-5804-AR	39.4 çin	1 çm	Right Angle Through Hole	UL94 V-0	Tin	2 A	Flash	24	0.1 in	2.54 mm	Square	All	Copper Alloy	2	Unshrouded	0.1 "	2.54 mm	0.272 in	6.9 mm	Thermoplastic	105 ░C	-25 °C	Black	0.197 "	5 mm	Male Pin	Push-Pull	Gold	Header	Solder	0.13 "	3.3 mm
3M Electronic Specialty 961224-6404-AR	39.4 çin	1 çm	Through Hole	UL94 V-0	Tin	2 A	Flash	24			Square	All	Copper Alloy	2	Unshrouded	0.1 "	2.54 mm	0.217 in	5.5 mm	Thermoplastic	105 ░C	-25 °C	Black	0.098 "	2.5 mm	Male Pin	Push-Pull	Gold	Header	Solder	0.13 "	3.3 mm	11.3 mm	0.445 in
3M Electronic Specialty 961224-6300-AR-PR	39.4 çin	1 çm	Surface Mount	UL94 V-0	Tin	2 A	Flash	24	0.1 in	2.54 mm	Square	All	Copper Alloy	2	Unshrouded	0.1 "	2.54 mm	0.21 in	5.33 mm	Thermoplastic	105 ░C	-25 °C	Black	0.098 "	2.5 mm	Male Pin	Push-Pull	Gold	Header	Solder					Pick and Place
3M Electronic Specialty 961224-6804-AR	39.4 çin	1 çm	Through Hole	UL94 V-0	Tin	2 A	Flash	24	0.1 in	2.54 mm	Square	All	Copper Alloy	2	Unshrouded	0.1 "	2.54 mm	0.268 in	6.8 mm	Thermoplastic	105 ░C	-25 °C	Black	0.098 "	2.5 mm	Male Pin	Push-Pull	Gold	Header	Solder	0.13 "	3.3 mm				0.496 in	12.6 mm
