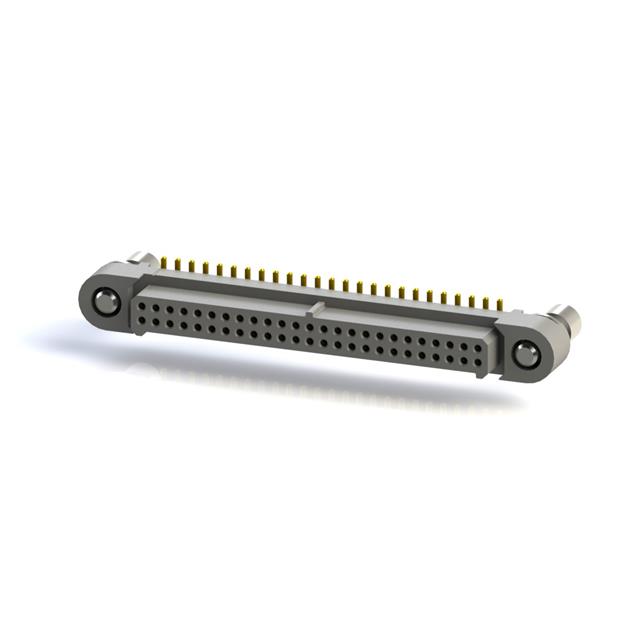

A222T50V Series
Manufacturer: Nicomatic
Beta
⌘K
FEM. 50POS STRAIGHT SMT 1.27MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Contact Material | Insulation Material | Fastening Type | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Finish - Post | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Number of Positions Loaded | Insulation Height [z] | Insulation Height [z] | Voltage Rating | Connector Type | Mounting Type | Insulation Color | Material Flammability Rating | Termination | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Mating | Current Rating (Amps) | Contact Type | Number of Positions | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nicomatic | 0.15 µm | 5.9 µin | Circular | Copper Alloy | Liquid Crystal Polymer (LCP) | Push-Pull | 1 mm | 0.039 in | -65 ░C | 200 °C | Jackscrews Mating Flange Mounting Flange Polarizing Key | Gold | 5.9 µin | 0.15 µm | All | 4 mm | 0.157 in | 600 VAC | Receptacle | Surface Mount | Black | UL94 V-0 | Solder | 0.039 in | 1 mm | Gold | 2.5 A | Female Socket | 50 | 2 |
