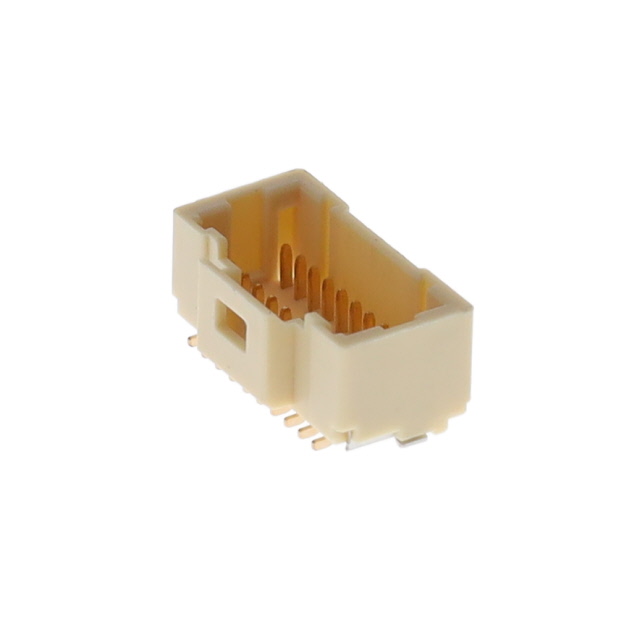

G846A20 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
WIRE TO BOARD 1.0MM PITCH,STR SM
| Part | Contact Finish Thickness - Post | Connector Type | Pitch - Mating | Pitch - Mating | Mounting Type | Contact Finish - Mating | Features | Contact Shape | Insulation Height [z] | Insulation Height [z] | Insulation Color | Insulation Material | Fastening Type | Contact Finish - Post | Contact Material | Style | Number of Positions | Termination | Contact Type | Number of Rows [custom] | Material Flammability Rating | Shrouding | Current Rating (Amps) | Contact Finish Thickness - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Flash | Header | 1 mm | 0.039 in | Surface Mount | Gold | Pick and Place | Rectangular | 0.213 " | 5.4 mm | Natural | Halogen Free Nylon 4T Polyamide (PA4T) | Latch Holder | Gold | Copper Alloy | Board to Cable/Wire | 20 | Solder | Male Pin | 2 | UL94 V-0 | Shrouded - 4 Wall | 1 A | Flash | 85 °C | -40 C | All | 50 VAC |
