QP Series
Manufacturer: Phoenix Contact
Beta
⌘K

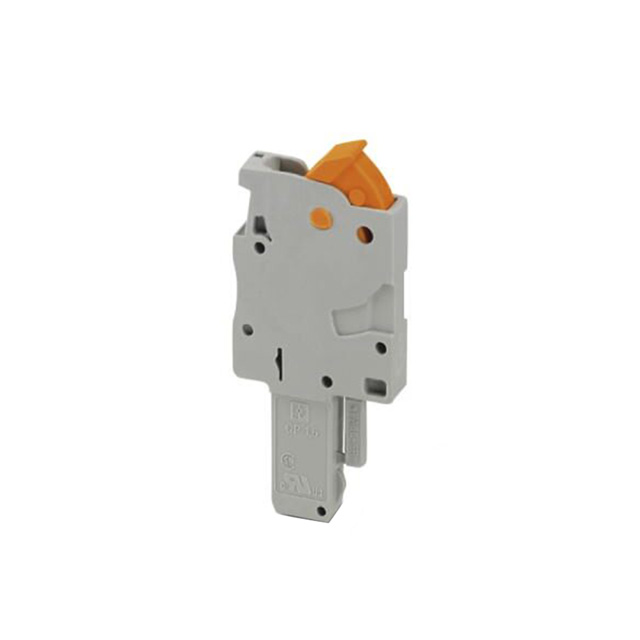

DIN RAIL TERMINAL BLOCKS QP 1.5/1-L
| Part | Housing Material | Insulation Height | Insulation Height | Material Flammability Rating | Current - UL | Termination Style | Number of Positions | Voltage - IEC | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Color | Features | Mounting Type | Contact Mating Finish | Operating Temperature [Min] | Operating Temperature [Max] | Number of Levels | Positions Per Level | Plug Wire Entry | Current - IEC | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | Polyamide (PA) Nylon | 40 mm | 1.575 in | UL94 V-0 | 5 A | IDC | 1 | 500 V | 16 AWG | 24 AWG | Gray | Interlocking (Side) | Free Hanging (In-Line) | Tin | -30 ░C | 70 °C | 1 | 1 | 180 ° | 17.5 A | 0.25 mm² | 1.5 mm² | Plug Female Sockets |
