CDFV17W Series

Catalog

CONN D-SUB PLUG 17P PNL MNT SLDR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Dielectric Material	Termination	Material Flammability Rating	Shell Material, Finish	Number of Positions	Flange Feature	Mounting Type	Contact Finish	Contact Finish Thickness	Ingress Protection	Features	Number of Rows [custom]	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Connector Style	Connector Type	Contact Finish Thickness	Contact Finish Thickness

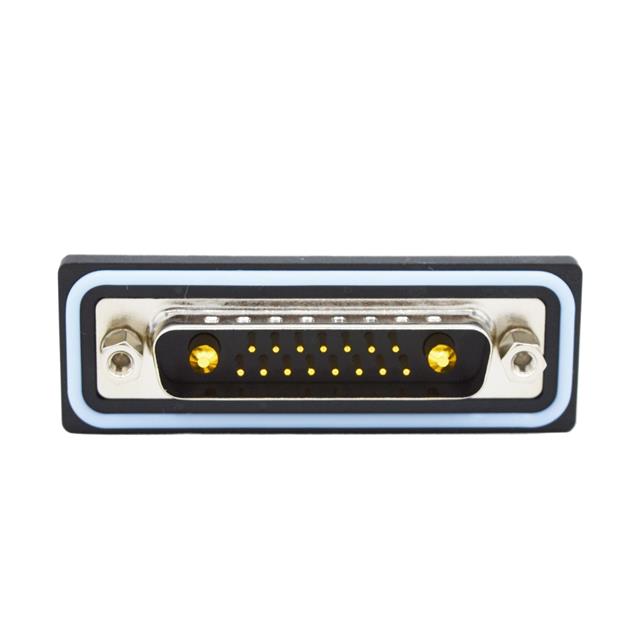

NorComp Inc. CDFV17W2113L451	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	Nickel Plated Steel	17	4-40 Mating Side Female Screwlock	Panel Mount Through Hole	Gold	Flash	IP67 - Dust Tight Waterproof	Board Lock Grounding Indents	2	Signal and Power	B DB	17W2	3	Combo D-Sub	Plug Male Pins
NorComp Inc. CDFV17W2113L252	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	Nickel Plated Steel	17	4-40 Mating Side Female Screwlock	Panel Mount Through Hole	Gold		IP67 - Dust Tight Waterproof	Board Lock Grounding Indents	2	Signal and Power	B DB	17W2	3	Combo D-Sub	Plug Male Pins	30 Áin	0.76 Ám

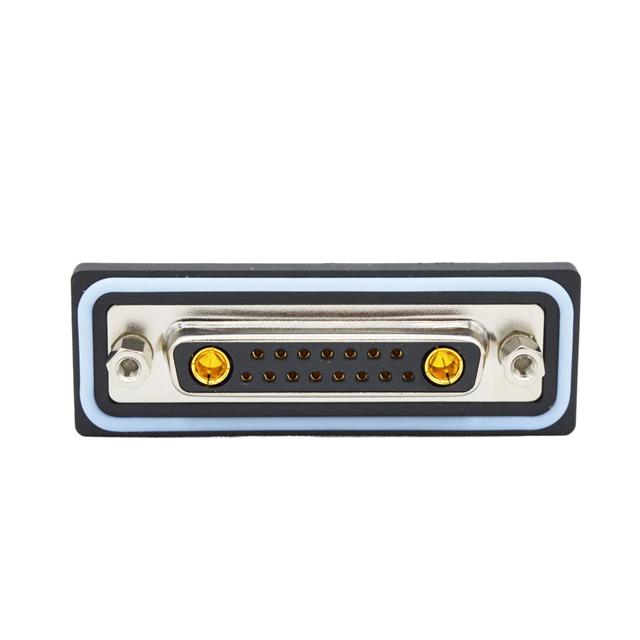

NorComp Inc. CDFV17W2213L251	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	Nickel Plated Steel	17	4-40 Mating Side Female Screwlock	Panel Mount Through Hole	Gold	Flash	IP67 - Dust Tight Waterproof	Board Lock	2	Signal and Power	B DB	17W2	3	Combo D-Sub	Receptacle Female Sockets
NorComp Inc. CDFV17W2213L412	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	Nickel Plated Steel	17	4-40 Mating Side Female Screwlock	Panel Mount Through Hole	Gold		IP67 - Dust Tight Waterproof		2	Signal and Power	B DB	17W2	3	Combo D-Sub	Receptacle Female Sockets	30 Áin	0.76 Ám

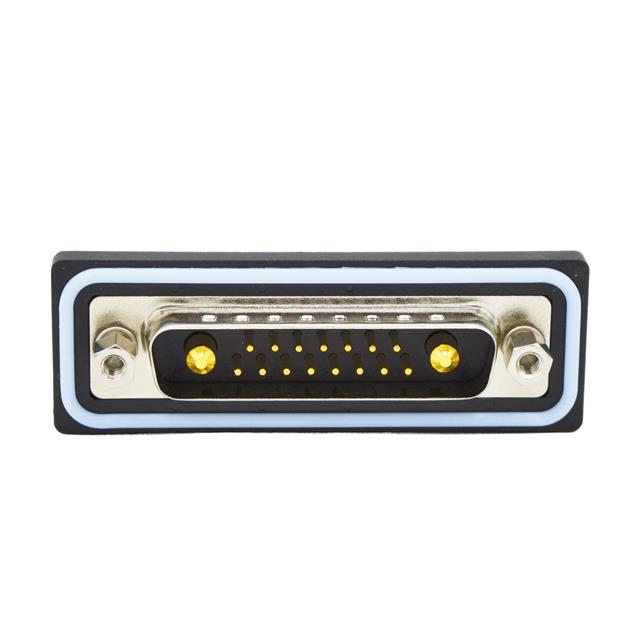

NorComp Inc. CDFV17W2113L211	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	Nickel Plated Steel	17	4-40 Mating Side Female Screwlock	Panel Mount Through Hole	Gold	Flash	IP67 - Dust Tight Waterproof	Grounding Indents	2	Signal and Power	B DB	17W2	3	Combo D-Sub	Plug Male Pins
NorComp Inc. CDFV17W2213L212	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	Nickel Plated Steel	17	4-40 Mating Side Female Screwlock	Panel Mount Through Hole	Gold		IP67 - Dust Tight Waterproof		2	Signal and Power	B DB	17W2	3	Combo D-Sub	Receptacle Female Sockets	30 Áin	0.76 Ám
NorComp Inc. CDFV17W2213L452	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	Nickel Plated Steel	17	4-40 Mating Side Female Screwlock	Panel Mount Through Hole	Gold		IP67 - Dust Tight Waterproof	Board Lock	2	Signal and Power	B DB	17W2	3	Combo D-Sub	Receptacle Female Sockets	30 Áin	0.76 Ám

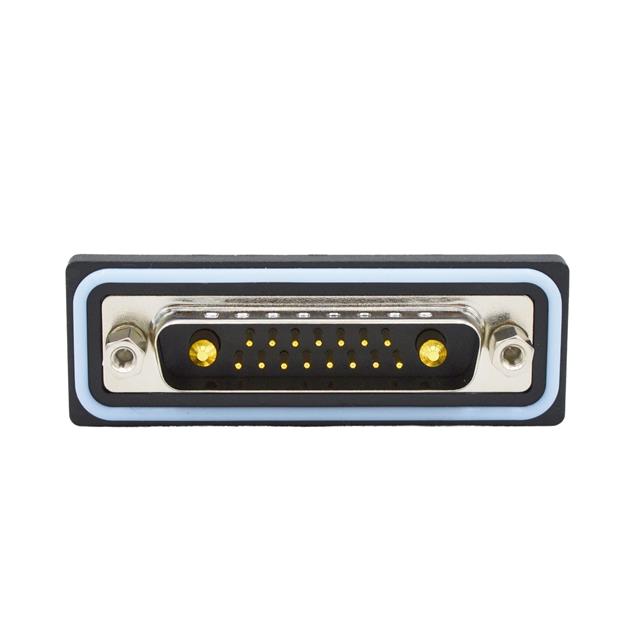

NorComp Inc. CDFV17W2113L251	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	Nickel Plated Steel	17	4-40 Mating Side Female Screwlock	Panel Mount Through Hole	Gold	Flash	IP67 - Dust Tight Waterproof	Board Lock Grounding Indents	2	Signal and Power	B DB	17W2	3	Combo D-Sub	Plug Male Pins

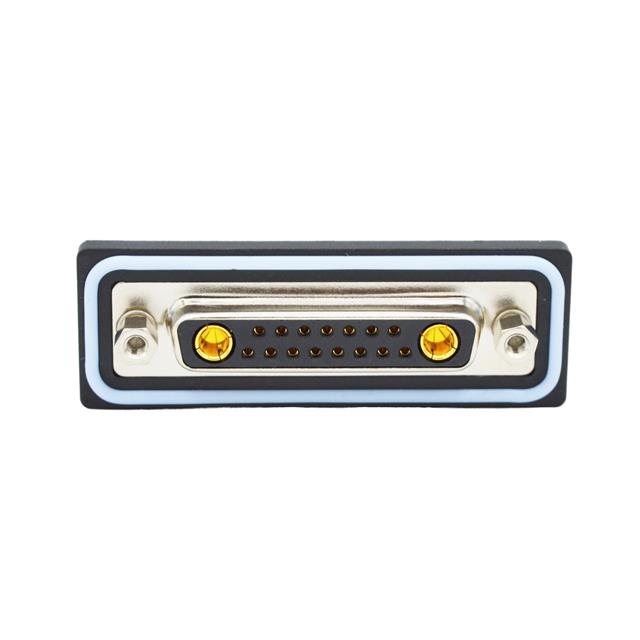

NorComp Inc. CDFV17W2213L211	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	Nickel Plated Steel	17	4-40 Mating Side Female Screwlock	Panel Mount Through Hole	Gold	Flash	IP67 - Dust Tight Waterproof		2	Signal and Power	B DB	17W2	3	Combo D-Sub	Receptacle Female Sockets

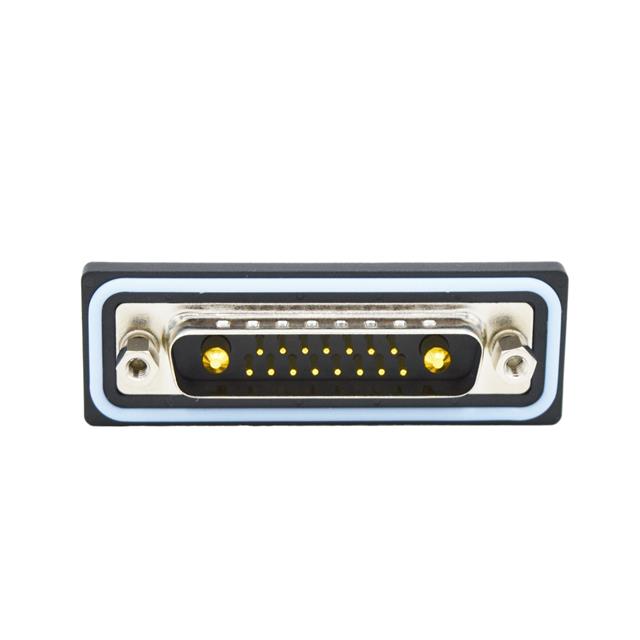

NorComp Inc. CDFV17W2113L411	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	Nickel Plated Steel	17	4-40 Mating Side Female Screwlock	Panel Mount Through Hole	Gold	Flash	IP67 - Dust Tight Waterproof	Grounding Indents	2	Signal and Power	B DB	17W2	3	Combo D-Sub	Plug Male Pins
