M2044ES Series

Catalog

SWITCH TOGGLE DP3T 6A 125V

Part	Actuator Material	Electrical Life	Switch Function	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Voltage Rating - AC	Circuit	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Mounting Type	Illumination	Features	Bushing Thread	Termination Style

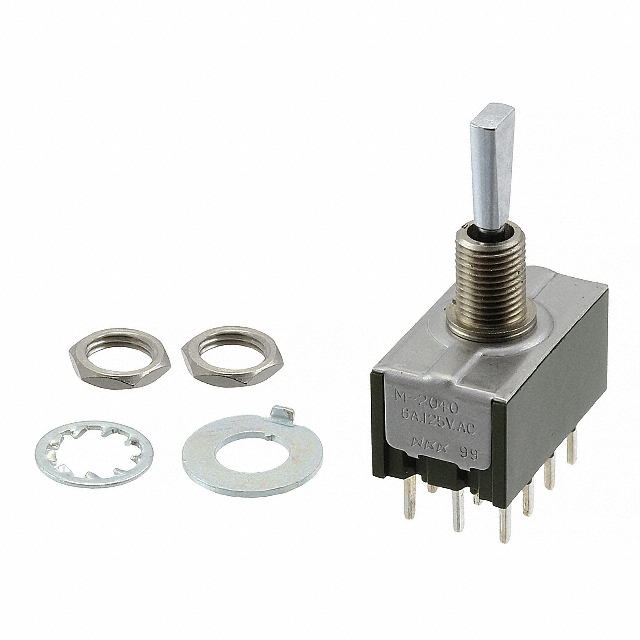

NKK Switches M2044ES1W03	Brass Chrome Plated	25000 Steps	On-On-On	30 V	6.5 mm	3 A 6 A	125 V	DP3T	Flatted	85 °C	-30 ░C	11.4 mm	Panel Mount	Non-Illuminated	Jumper needed to achieve triple throw	1/4-40	PC Pin

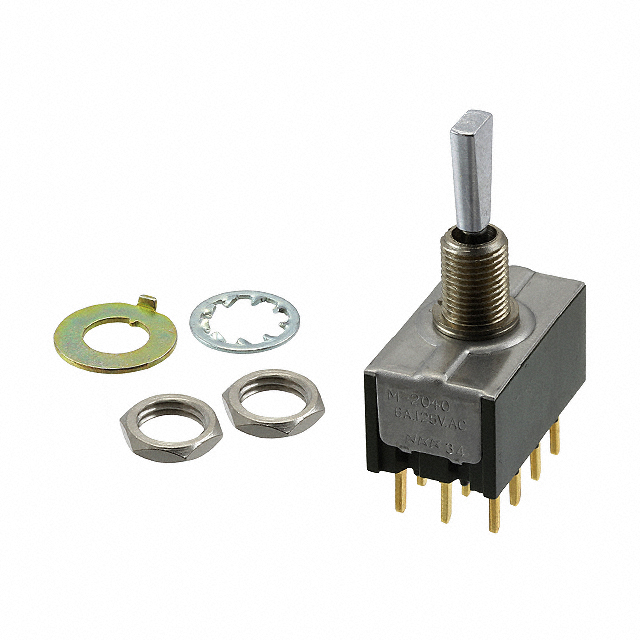

NKK Switches M2044ES1A03	Brass Chrome Plated	25000 Steps	On-On-On	30 V	6.5 mm	3 A 6 A	125 V	DP3T	Flatted	85 °C	-30 ░C	11.4 mm	Panel Mount	Non-Illuminated	Jumper needed to achieve triple throw	1/4-40	PC Pin

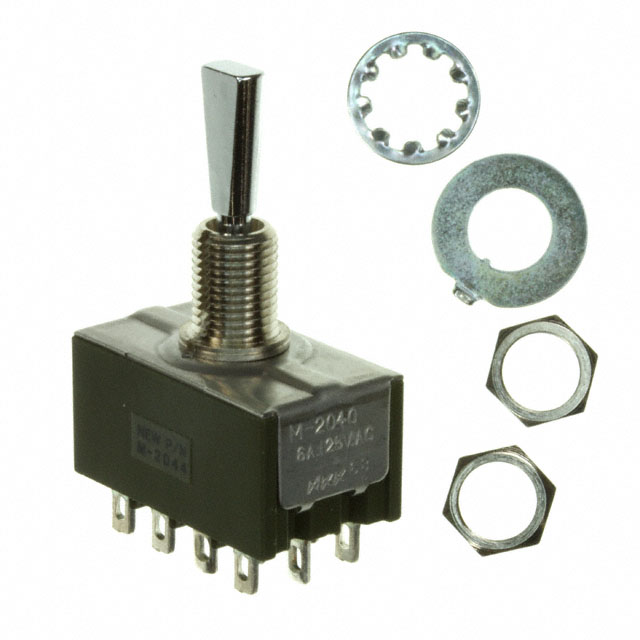

NKK Switches M2044ES1W01	Brass Chrome Plated	25000 Steps	On-On-On	30 V	6.5 mm	3 A 6 A	125 V	DP3T	Standard Round	85 °C	-30 ░C	11.4 mm	Panel Mount	Non-Illuminated	Jumper needed to achieve triple throw	1/4-40	Solder Lug
