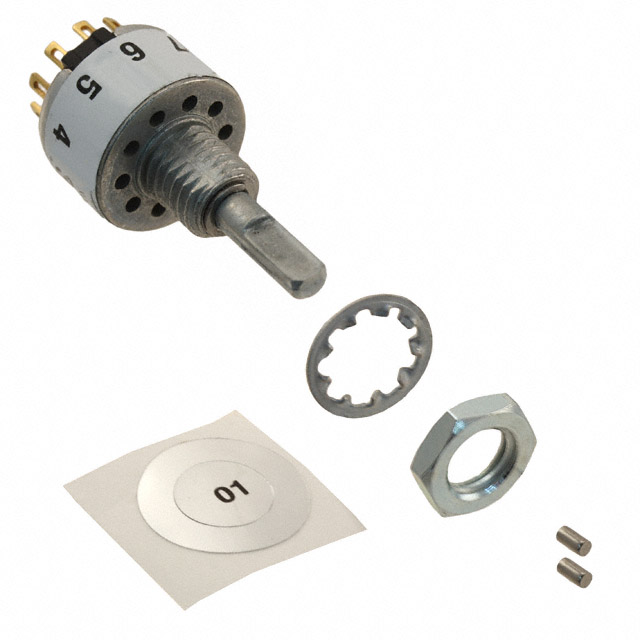

56D36 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY DP5T 5 FLATTED SHAFT SOLDER LUG 0.2A 115VAC 30VDC
| Part | Depth Behind Panel [z] | Actuator Type | Contact Material | Index Stops | Mounting Type | Angle of Throw | Contact Finish | Termination Style | Voltage Rating - DC | Contact Timing | Circuit per Deck | Number of Poles per Deck | Number of Decks [custom] | Voltage Rating - AC | Actuator Length [x] | Number of Positions [Max] | Number of Positions [Min] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 12.19 mm | Flatted (3.17mm Dia) | Brass | Adjustable | Panel Mount | 36 ° | Silver | Solder Lug | 30 V | Non-Shorting (BBM) | DP5T | 2 | 1 | 115 V | 9.53 mm | 5 | 2 | 200 mA |
