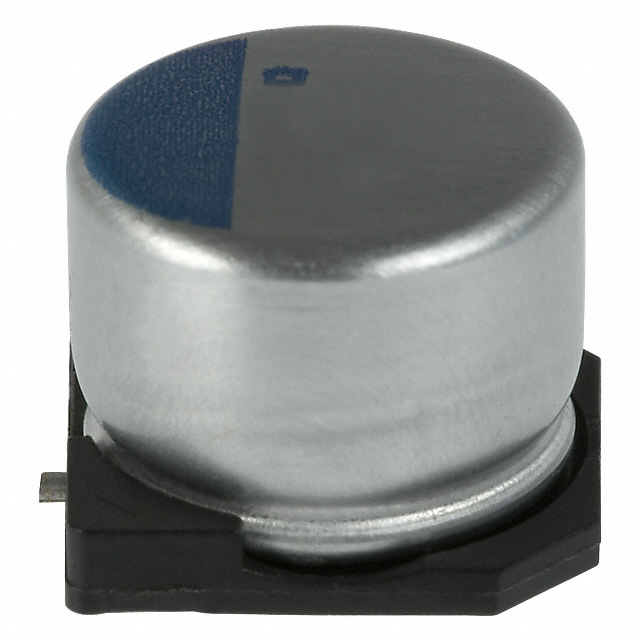

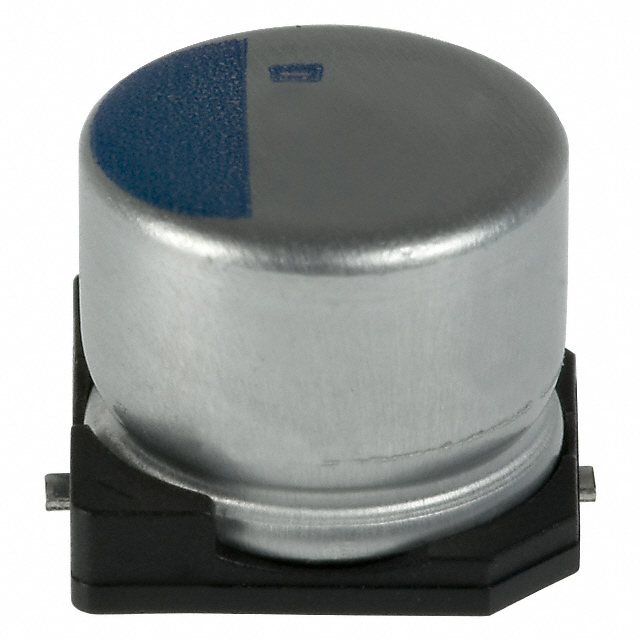

PXA Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS 470UF 6.3V SMT CAN

Part	Mounting Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Package / Case	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max)	Tolerance	Capacitance	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Ripple Current @ High Frequency
Chemi-Con APXA6R3ARA471MHC0G	Surface Mount	8.3 mm	8.3 mm	0.327 in	0.327 in	Radial Can - SMD	General Purpose	0.315 in	8 mm	Polymer	12 mOhms	0.472 in	12 mm	20 %	470 µF	15000 Hrs	-55 C	105 ░C	6.3 VDC	4.77 A
Chemi-Con APXA4R0ARA681MJ80G	Surface Mount	10.3 mm	10.3 mm	0.406 "	0.406 in	Radial Can - SMD	General Purpose	0.394 in	10 mm	Polymer	20 mOhms	0.303 in	7.7 mm	20 %	680 µF	15000 Hrs	-55 C	105 ░C	4 V	4.13 A
Chemi-Con APXA6R3ARA821MJC0G	Surface Mount	10.3 mm	10.3 mm	0.406 "	0.406 in	Radial Can - SMD	General Purpose	0.394 in	10 mm	Polymer	10 mOhm	0.48 in	12.2 mm	20 %	820 µF	15000 Hrs	-55 C	105 ░C	6.3 VDC	5.5 A
Chemi-Con APXA6R3ARA101ME60G	Surface Mount	0.209 in 5.3 mm	0.209 in 5.3 mm			Radial Can - SMD	General Purpose	0.197 in	5 mm	Polymer	35 mOhms	0.236 "	6 mm	20 %	100 µF	15000 Hrs	-55 C	105 ░C	6.3 VDC	1.38 A
Chemi-Con APXA2R5ARA102MJ80G	Surface Mount	10.3 mm	10.3 mm	0.406 "	0.406 in	Radial Can - SMD	General Purpose	0.394 in	10 mm	Polymer	19 mOhm	0.303 in	7.7 mm	20 %	1000 µF	15000 Hrs	-55 C	105 ░C	2.5 V	4.24 A
Chemi-Con APXA100ARA561MJC0G	Surface Mount	10.3 mm	10.3 mm	0.406 "	0.406 in	Radial Can - SMD	General Purpose	0.394 in	10 mm	Polymer	12 mOhms	0.48 in	12.2 mm	20 %	560 µF	15000 Hrs	-55 C	105 ░C	10 V	5.3 A
Chemi-Con APXA100ARA471MJC0G	Surface Mount	10.3 mm	10.3 mm	0.406 "	0.406 in	Radial Can - SMD	General Purpose	0.394 in	10 mm	Polymer	12 mOhms	0.48 in	12.2 mm	20 %	470 µF	15000 Hrs	-55 C	105 ░C	10 V	5.3 A
