181-062 Series
Manufacturer: NorComp Inc.
Beta
⌘K

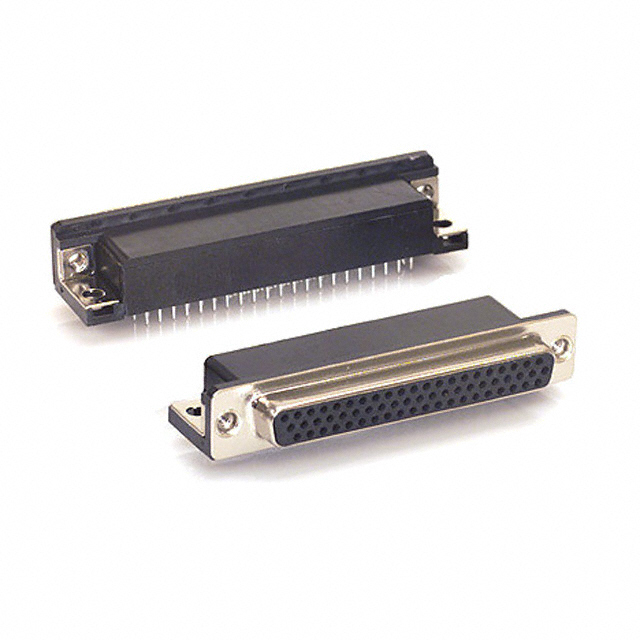

D SUB CONNECTOR, HD62, 62 CONTACTS, PLUG, THROUGH HOLE, DC, 181 SERIES, STEEL BODY
| Part | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Backset Spacing | Backset Spacing | Flange Feature | Flange Feature | Mounting Type | Contact Type | Number of Rows [custom] | Current Rating (Amps) | Termination | Material Flammability Rating | Contact Finish Thickness | Number of Positions | Contact Finish | Connector Type | Features | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Style | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Nylon 9T Polyamide (PA9T) | Brass | -55 C | 105 ░C | Black | 250 V | 8.89 mm | 0.35 in | Housing/Shell | 4-40 | Panel Mount Right Angle Through Hole | Signal | 3 | 3 A | Solder | UL94 V-0 | Flash | 62 | Gold | Plug Male Pins | Board Lock Grounding Indents Shielded | C DC | 4 | D-Sub High Density | Nickel Plated Steel |

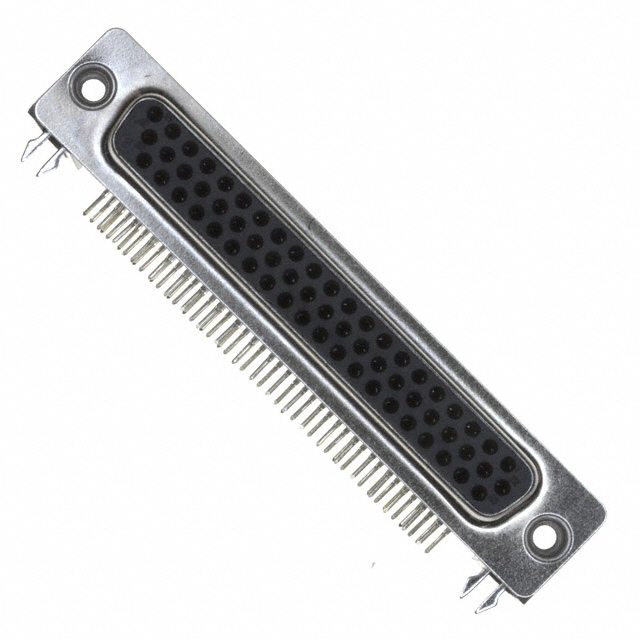

 NorComp Inc. | Nylon 9T Polyamide (PA9T) | Brass | -55 C | 105 ░C | Black | 250 V | 8.89 mm | 0.35 in | Housing/Shell | 4-40 | Panel Mount Right Angle Through Hole | Signal | 3 | 3 A | Solder | UL94 V-0 | Flash | 62 | Gold | Receptacle Female Sockets | Ground Strap Shielded | C DC | 4 | D-Sub High Density | Nickel Plated Steel |
NorComp Inc. | Nylon 9T Polyamide (PA9T) | Brass | -55 C | 105 ░C | Black | 250 V | 8.89 mm | 0.35 in | Housing/Shell | 4-40 | Panel Mount Right Angle Through Hole | Signal | 3 | 3 A | Solder | UL94 V-0 | Flash | 62 | Gold | Receptacle Female Sockets | Board Lock Shielded | C DC | 4 | D-Sub High Density | Nickel Plated Steel |
NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | -50 °C | 100 °C | Black | 8.89 mm | 0.35 in | Housing/Shell | 4-40 | Panel Mount Right Angle Through Hole | Signal | 3 | 2 A | Solder | UL94 V-0 | Flash | 62 | Gold | Receptacle Female Sockets | Ground Strap | C DC | 4 | D-Sub High Density |
