19K107 Series
Manufacturer: Rosenberger
Beta
⌘K

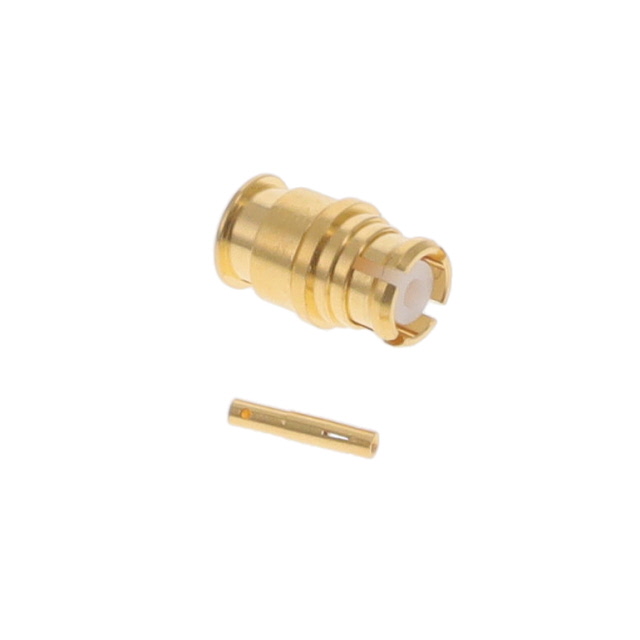

CONN SMP JACK STR 50OHM SOLDER
| Part | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Voltage Rating | Dielectric Material | Body Material | Impedance | Fastening Type | Connector Type | Cable Group | Mounting Type | Housing Color | Frequency - Max [Max] | Center Contact Material | Number of Ports | Shield Termination | Contact Termination | Mating Cycles | Insertion Loss | Adapter Series | Center Gender | Convert To (Adapter End) | Style | Fastening Type | Adapter Type | Conversion Type | Convert From (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Gold | 155 C | -65 ░C | Gold | 335 V | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 50 Ohms | Snap-On | Female Socket Jack | RG-405 (.085" Semi Rigid) | Free Hanging (In-Line) | Gold | 40 GHz | Beryllium Copper | 1 | Solder | Solder | ||||||||||
 Rosenberger | Gold | 155 C | -65 ░C | Gold | 335 V | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 50 Ohms | Snap-On | Female Socket Jack | UT-47 | Free Hanging (In-Line) | Gold | 40 GHz | Beryllium Copper | 1 | Solder | Solder | ||||||||||
 Rosenberger | Gold | 155 C | -65 ░C | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 50 Ohms | Snap-On | Free Hanging (In-Line) | 26.5 GHz | Beryllium Copper | 1000 | 0.52 dB | SMP to SMP | Female to Female | SMP Jack Female Socket | Straight | Snap-On | Jack to Jack | Same Series | Female Socket SMP Jack |
