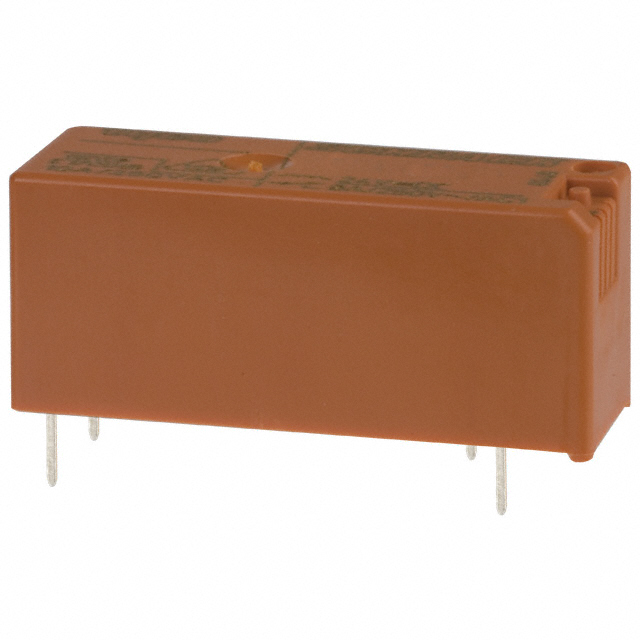

RY5300 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
POWER RELAY 5VDC 8A SPST-NO(28.5MM 10.1MM 12.3MM) THT
| Part | Coil Resistance | Operate Time | Approval Agency | Seal Rating | Contact Rating (Current) | Load - Max Switching | Must Operate Voltage | Release Time | Coil Voltage | Contact Material | Switching Voltage [Max] | Mounting Type | Relay Type | Must Release Voltage | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Termination Style | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 112 Ohms | 9 ms | cURus VDE | Sealed - Flux Protection | 8 A | 3200 VA | 3.5 VDC | 5 ms | 5 VDC | Silver Cadmium Oxide (AgCdO) | 400 VAC | Through Hole | General Purpose | 0.5 VDC | 44.6 mA | 70 °C | -40 C | SPST-NO (1 Form A) | PC Pin | Non Latching |
 TE Connectivity AMP Connectors | 9 ms | cURus VDE | Sealed - Flux Protection | 8 A | 3200 VA | 10.5 VDC | 5 ms | 15 VDC | Silver Cadmium Oxide (AgCdO) | 400 VAC | Through Hole | General Purpose | 1.5 VDC | 70 °C | -40 C | SPST-NO (1 Form A) | PC Pin | Non Latching | ||
TE Connectivity AMP Connectors | 9.4 kOhms | 9 ms | cURus VDE | Sealed - Flux Protection | 8 A | 3200 VA | 33.6 VDC | 5 ms | 48 VDC | Silver Cadmium Oxide (AgCdO) | 400 VAC | Through Hole | General Purpose | 4.8 VDC | 5.1 mA | 70 °C | -40 C | SPST-NO (1 Form A) | PC Pin | Non Latching |
TE Connectivity AMP Connectors | 320 Ohms | 9 ms | cURus VDE | Sealed - Flux Protection | 8 A | 3200 VA | 6.3 VDC | 5 ms | 9 VDC | Silver Cadmium Oxide (AgCdO) | 400 VAC | Through Hole | General Purpose | 0.9 VDC | 28.1 mA | 70 °C | -40 C | SPST-NO (1 Form A) | PC Pin | Non Latching |
TE Connectivity AMP Connectors | 9 ms | cURus VDE | Sealed - Flux Protection | 8 A | 3200 VA | 22.4 VDC | 5 ms | 32 VDC | Silver Cadmium Oxide (AgCdO) | 400 VAC | Through Hole | General Purpose | 3.2 VDC | 70 °C | -40 C | SPST-NO (1 Form A) | PC Pin | Non Latching | ||
TE Connectivity AMP Connectors | 14 kOhms | 9 ms | cURus VDE | Sealed - Flux Protection | 8 A | 3200 VA | 42 VDC | 5 ms | 60 VDC | Silver Cadmium Oxide (AgCdO) | 400 VAC | Through Hole | General Purpose | 6 VDC | 4.3 mA | 70 °C | -40 C | SPST-NO (1 Form A) | PC Pin | Non Latching |
TE Connectivity AMP Connectors | 162 Ohms | 9 ms | cURus VDE | Sealed - Flux Protection | 8 A | 3200 VA | 4.2 VDC | 5 ms | Silver Cadmium Oxide (AgCdO) | 400 VAC | Through Hole | General Purpose | 0.6 VDC | 37 mA | 70 °C | -40 C | SPST-NO (1 Form A) | PC Pin | Non Latching |
