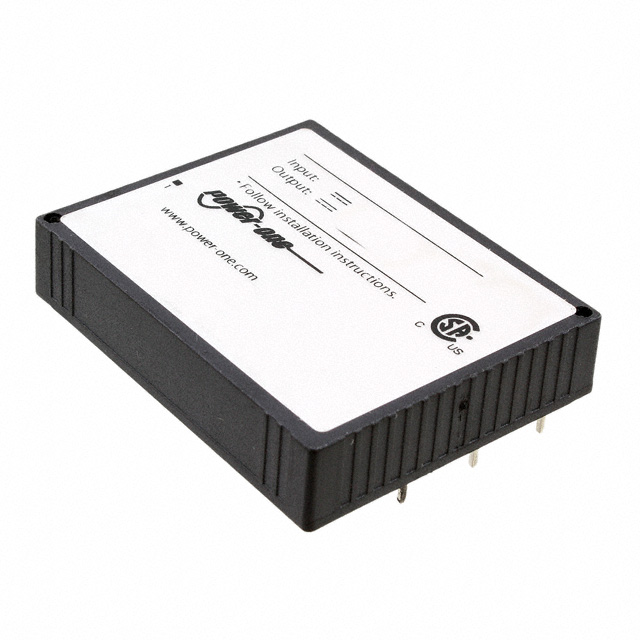

40IMX15 Series

Catalog

DC DC CONVERTER 12V 12V 15W

Part	Voltage - Isolation	Voltage - Input (Min) [Min]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Output 1	Type	Voltage - Input (Max) [Max]	Package / Case	Power (Watts)	Number of Outputs	Mounting Type	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 2	Efficiency	Current - Output (Max)
Bel Fuse Inc. 40IMX15-12-12-8G	2.1 kV	16.8 V	ITE (Commercial) Railway	85 °C	-40 C	OCP OTP OVP SCP UVLO	12 V	Isolated Module Conformal Coated	75 V	17-DIP Module 11 Leads	15 W	2	Through Hole	700 mA	700 mA	1.6 in	40.6 mm	10.5 mm	2 in	50.8 mm	0.41 in	12 V	88 %
Bel Fuse Inc. 40IMX15-03-8RG	2.1 kV	16.8 V	ITE (Commercial)	85 °C	-40 C	OCP OTP OVP SCP UVLO	3.3 V	Isolated Module Conformal Coated	75 V	17-DIP Module 11 Leads	15 W	1	Through Hole	4.5 A		1.6 in	40.6 mm	10.5 mm	2 in	50.8 mm	0.41 in		83 %
Bel Fuse Inc. 40IMX15-05-8RG	2.1 kV	16.8 V	ITE (Commercial) Railway	85 °C	-40 C	OCP OTP OVP SCP UVLO	5.1 V	Isolated Module Conformal Coated	75 V	17-DIP Module 11 Leads	15 W	1	Through Hole	3.5 A		1.6 in	40.6 mm	10.5 mm	2 in	50.8 mm	0.41 in		87 %
Bel Fuse Inc. 40IMX15-0503-8R	2.1 kV	16.8 V	ITE (Commercial) Railway	85 °C	-40 °C	OCP OTP OVP Remote On/Off SCP UVLO	5.1 V	Isolated Module Conformal Coated	75 V	17-DIP Module 9 Leads	13 W	2	Through Hole			1.61 in	40.9 mm	10.4 mm	2 in	50.8 mm	0.41 in	3.3 V	84 %	1.5 A
Bel Fuse Inc. 40IMX15-05-8RG-G	2.1 kV	16.8 V	ITE (Commercial) Railway	85 °C	-40 C	OCP OTP OVP SCP UVLO	5.1 V	Isolated Module Conformal Coated	75 V	17-DIP Module 11 Leads	15 W	1	Through Hole	3.5 A		1.6 in	40.6 mm	10.5 mm	2 in	50.8 mm	0.41 in		87 %

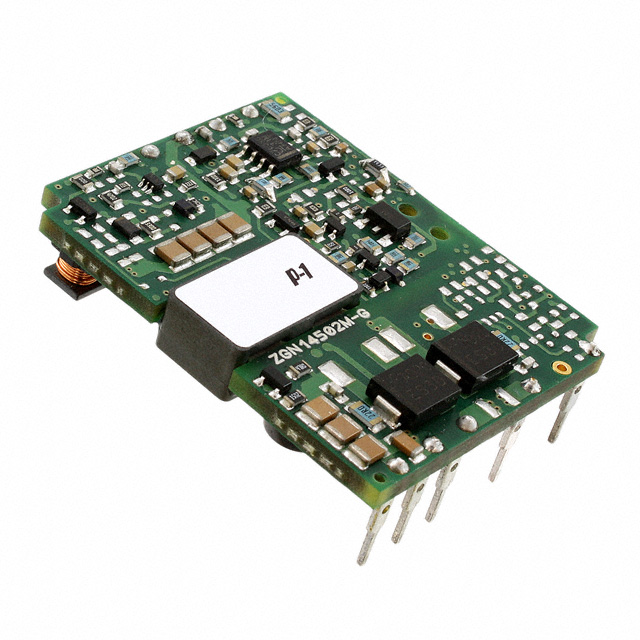

Bel Fuse Inc. 40IMX15-24-24-8ZG	2.1 kV	16.8 V		85 °C	-40 C	OCP OTP OVP SCP UVLO	24 V	Isolated Module Conformal Coated	75 V	17-DIP Module 9 Leads	15 W	2	Through Hole									24 V	86 %	350 mA
Bel Fuse Inc. 40IMX15-24-24-8G	2.1 kV	16.8 V	ITE (Commercial) Railway	85 °C	-40 C	OCP OTP OVP SCP UVLO	24 V	Isolated Module Conformal Coated	75 V	17-DIP Module 11 Leads	15 W	2	Through Hole			1.6 in	40.6 mm	10.5 mm	2 in	50.8 mm	0.41 in	24 V	86 %	350 mA
