DT04 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT HSG 3POS

Part	Note	Connector Type	Fastening Type	Contact Type	Mounting Type	Number of Rows [custom]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Color	Insulation Material	Pitch	Pitch	Row Spacing	Row Spacing	Number of Positions	Number of Rows
TE Connectivity AMP Connectors DT04-3P-TN32	Contacts Not Included	Receptacle	Latch Holder	Male Pin	Free Hanging (In-Line)	2	Cap (Cover) IP68 IP6K9K Reduced Wire Seals Sealed Gasket	-55 C	125 °C	Crimp	Black	Glass Filled Nylon 6/6 Polyamide (PA66)

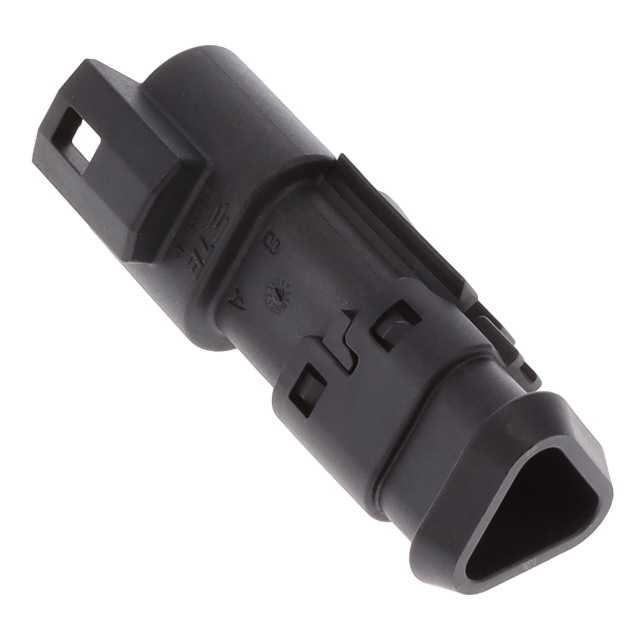

TE Connectivity AMP Connectors DT04-3P-TE82	Contacts Not Included	Receptacle	Latch Holder	Male Pin	Free Hanging (In-Line)	2	Cap (Cover) IP68 IP6K9K Reduced Wire Seals Sealed Gasket	-55 C	125 °C	Crimp	Black	Glass Filled Nylon 6/6 Polyamide (PA66)

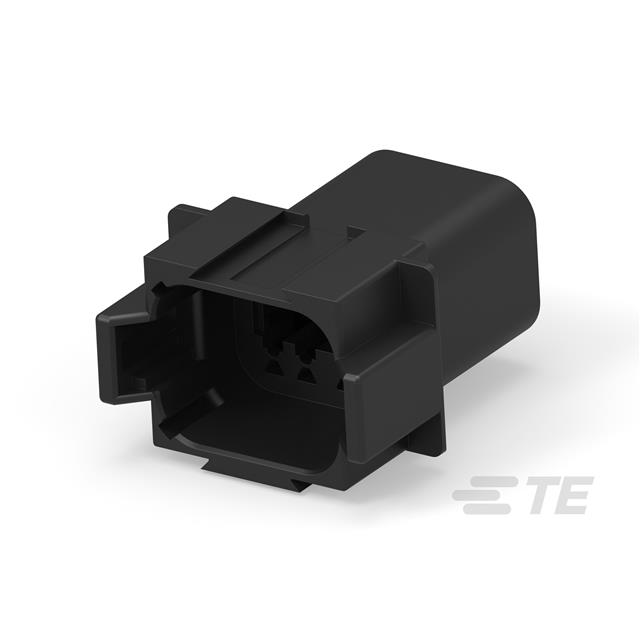

TE Connectivity AMP Connectors DT04-08PB-P004		Receptacle	Latch Holder	Male Pin	Free Hanging (In-Line)	2	Sealed	-55 C	125 °C	Crimp	Black	Glass Filled Nylon Polyamide (PA)	9.12 mm	0.359 in	4.45 mm	0.175 in	8

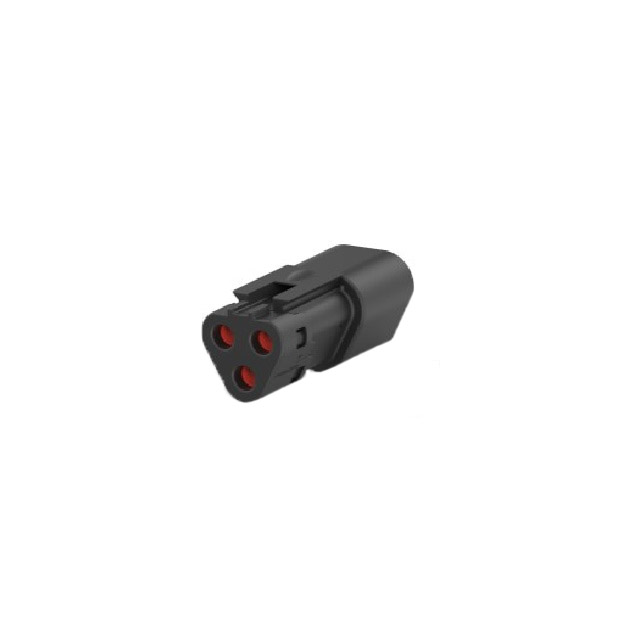

TE Connectivity AMP Connectors DT04-3P-TE32	Contacts Not Included	Receptacle	Latch Holder	Male Pin	Free Hanging (In-Line)	2	Cap (Cover) IP68 IP6K9K Reduced Wire Seals Sealed Gasket	-55 C	125 °C	Crimp	Black	Glass Filled Nylon 6/6 Polyamide (PA66)
TE Connectivity AMP Connectors DT04-12PC-CE08		Receptacle	Latch Holder	Male Pin	Free Hanging (In-Line)	2	Sealed	-55 C	125 °C	Crimp	Green	Glass Filled Nylon 6/6 Polyamide (PA66)					12
TE Connectivity AMP Connectors DT04-08PB-P004	Contacts Not Included	Receptacle	Latch Holder	Male Pin	Free Hanging (In-Line)	2	IP68 IP6K9K	-55 C	125 °C	Crimp	Black	Plastic					8
TE Connectivity AMP Connectors DT04-3P-TN82	Contacts Not Included	Receptacle	Latch Holder	Male Pin	Free Hanging (In-Line)	2	Cap (Cover) IP68 IP6K9K Reduced Wire Seals Sealed Gasket	-55 C	125 °C	Crimp	Black	Glass Filled Nylon 6/6 Polyamide (PA66)
TE Connectivity AMP Connectors DT04-2P-RL02	Contacts Not Included	Receptacle	Latch Holder	Male Pin			IP68 IP6K9K	-55 C	125 °C	Crimp		Plastic					2	1
TE Connectivity AMP Connectors DT04-12PC-CE08	Contacts Not Included	Receptacle	Latch Holder	Male Pin	Free Hanging (In-Line)	2	Enhanced Keying IP68 IP6K9K Reduced Wire Seals	-55 C	125 °C	Crimp	Green	Plastic					12

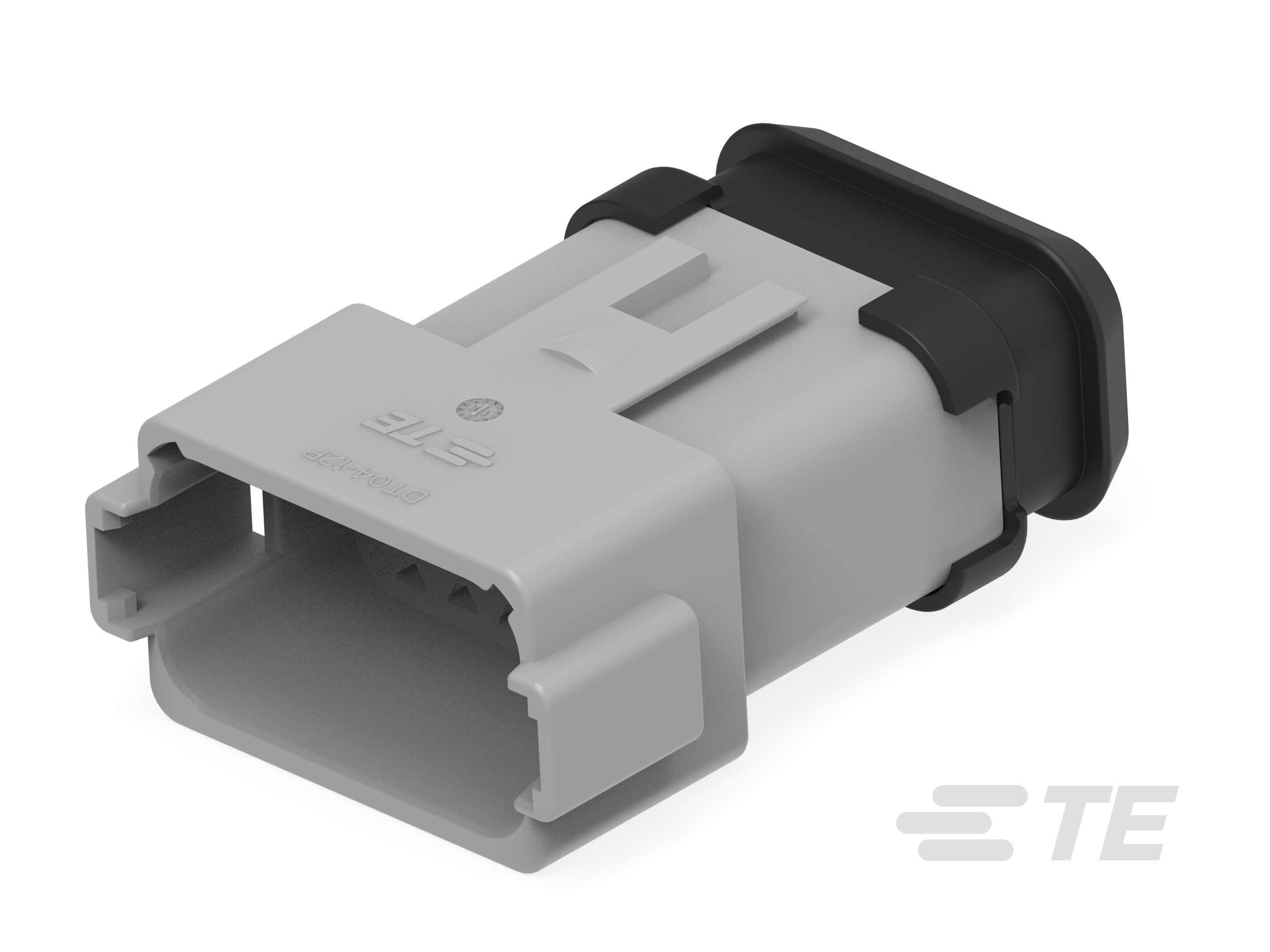

TE Connectivity AMP Connectors DT04-12PA-CE04		Receptacle	Locking Ramp	Male Pin	Free Hanging (In-Line)	2	Sealed Terminal Position Lock (TPA)	-55 C	125 °C	Crimp	Gray	Glass Filled Nylon 6/6 Polyamide (PA66)	9.12 mm	0.359 in			12
