LEV200 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

RELAY CONTACTOR SPST 500A 115V

Part	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Contact Rating (Current)	Features	Switching Voltage	Release Time	Contact Form	Termination Style	Mounting Type	Coil Current	Must Operate Voltage	Coil Resistance	Must Release Voltage

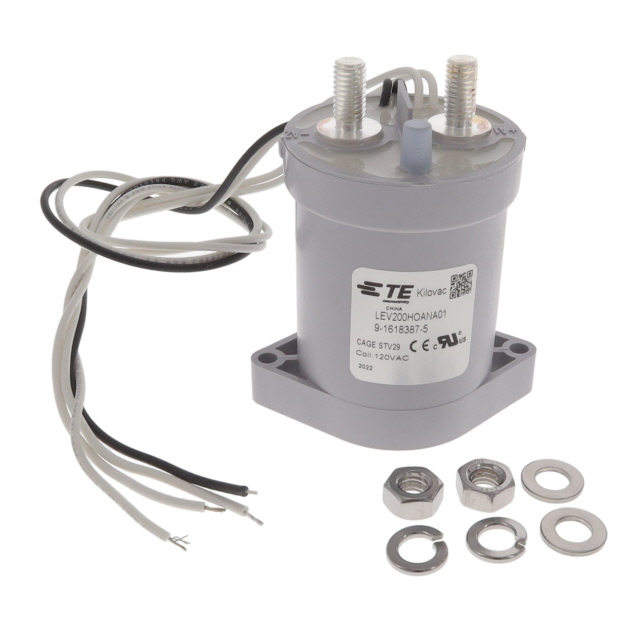

TE Connectivity Aerospace, Defense and Marine LEV200HOANA01	25 ms	85 °C	-40 °C	115 VAC	500 A	Sealed - Hermetically	900 VDC	12 ms	SPST-NO (DM) (1 Form X)	Stud Wire Leads	Chassis Mount
TE Connectivity Aerospace, Defense and Marine LEV200A5ANA	25 ms	85 °C	-40 °C	24 VDC	500 A	Sealed - Hermetically	900 VDC	12 ms	SPST-NO (DM) (1 Form X)	Stud Wire Leads	Chassis Mount	600 mA	19 VDC	40 Ohms	5 VDC
TE Connectivity Aerospace, Defense and Marine LEV200H4ANA	25 ms	85 °C	-40 °C	12 VDC	500 A	Sealed - Hermetically	900 VDC	12 ms	SPST-NO (DM) (1 Form X)	Stud Wire Leads	Chassis Mount	1.1 A	9 VDC	11 Ohms	2 VDC

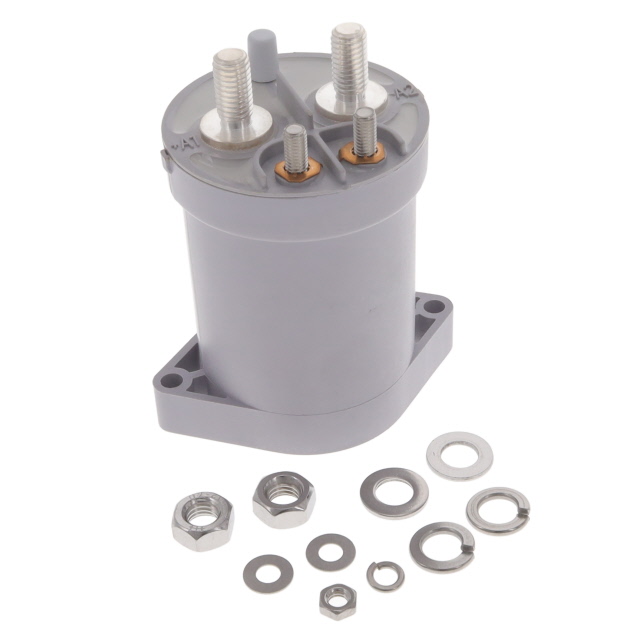

TE Connectivity Aerospace, Defense and Marine LEV200ABNAA	25 ms	85 °C	-40 °C	28 VDC	500 A	Sealed - Hermetically	900 VDC	12 ms	SPST-NO (DM) (1 Form X)	Stud	Chassis Mount	600 mA	19 VDC	40 Ohms	5 VDC

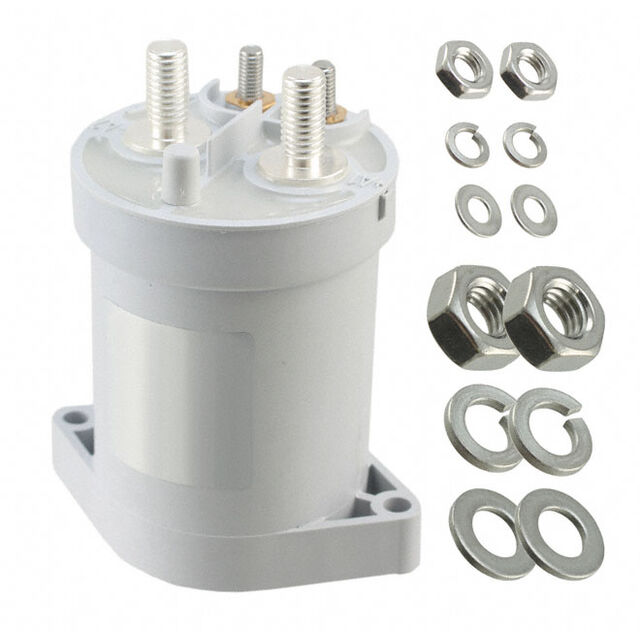

TE Connectivity Aerospace, Defense and Marine LEV200A4NAA	25 ms	85 °C	-40 °C	12 VDC	500 A	Sealed - Hermetically	900 VDC	12 ms	SPST-NO (DM) (1 Form X)	Stud	Chassis Mount	1.1 A	9 VDC	11 Ohms	2 VDC
TE Connectivity Aerospace, Defense and Marine LEV200A4ANF	25 ms	85 °C	-40 °C	12 VDC	500 A	Sealed - Hermetically	900 VDC	12 ms	SPST-NO (DM) (1 Form X)	Stud Wire Leads	Chassis Mount	1.1 A	9 VDC	11 Ohms	2 VDC
TE Connectivity Aerospace, Defense and Marine LEV200H5ANA	25 ms	85 °C	-40 °C	24 VDC	500 A	Sealed - Hermetically	900 VDC	12 ms	SPST-NO (DM) (1 Form X)	Stud Wire Leads	Chassis Mount	600 mA	19 VDC	40 Ohms	5 VDC
TE Connectivity Aerospace, Defense and Marine LEV200A9ANA
TE Connectivity Aerospace, Defense and Marine LEV200A5NAF	25 ms	85 °C	-40 °C	24 VDC	500 A	Sealed - Hermetically	900 VDC	12 ms	SPST-NO (DM) (1 Form X)	Stud	Chassis Mount	600 mA	19 VDC	40 Ohms	5 VDC
