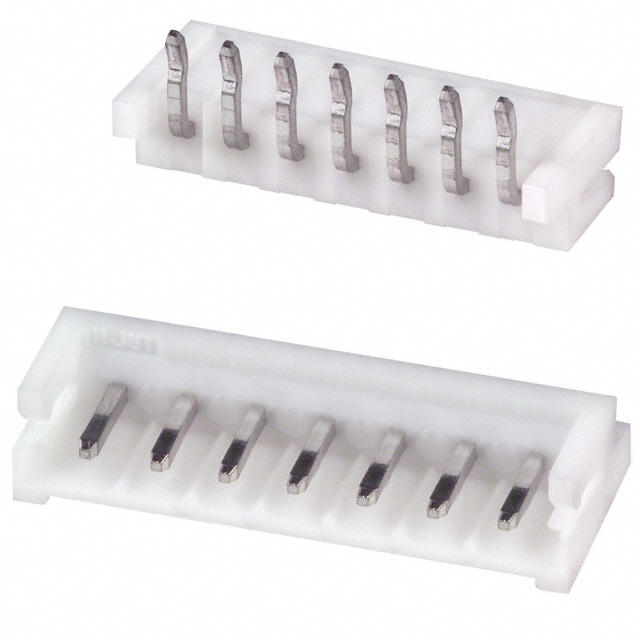

S7B-EH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 7POS 2.5MM
| Part | Pitch - Mating | Pitch - Mating | Insulation Color | Termination | Number of Positions | Insulation Material | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post [x] | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Style | Mounting Type | Contact Type | Number of Rows | Contact Finish - Post | Connector Type | Material Flammability Rating | Insulation Height | Insulation Height | Current Rating (Amps) | Voltage Rating | Fastening Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 2.5 mm | 0.098 in | Natural | Press-Fit Solder | 7 | Nylon 6/6 Polyamide (PA66) | 4 mm | 0.157 in | All | 0.126 " | 3.2 mm | Shrouded - 3 Wall | 85 °C | -25 °C | Square | Board to Cable/Wire | Right Angle Through Hole | Male Pin | 1 | Tin | Header | UL94 V-0 | 0.165 in | 4.2 mm | 3 A | 250 V | Latch Lock | Brass |
