HLW5R Series

Catalog

CONN FFC FPC TOP 5POS 1MM R/A

Part	Mating Cycles	Housing Color	Actuator Color	Termination	Number of Positions	Contact Finish	Flat Flex Type	Contact Material	Connector/Contact Type	Voltage Rating	Mounting Type	Pitch	Pitch	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Height Above Board [z]	Height Above Board [z]	Cable End Type	FFC, FCB Thickness

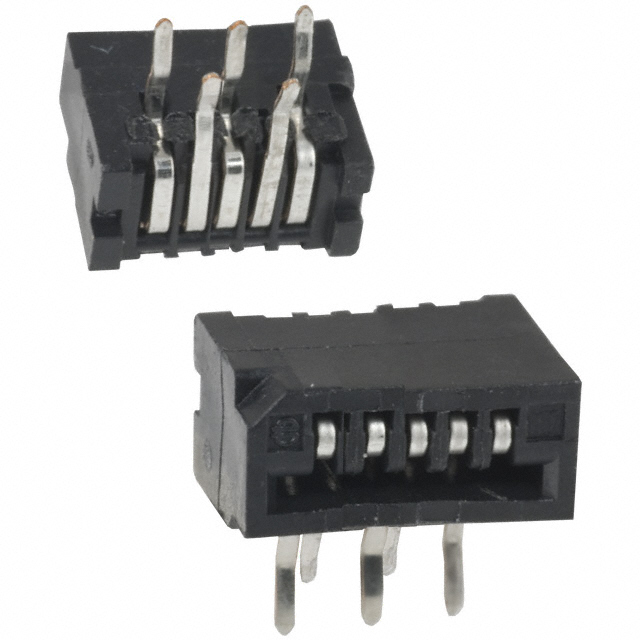

Amphenol ICC (FCI) HLW5R-2C7LF	30	Black	Black	Solder	5	Tin	FFC FPC	Phosphor Bronze	Contacts Top	100 V	Right Angle Through Hole	1 mm	0.039 in	0.3 mm	0.33 mm	UL94 V-0	-55 C	85 °C	Polybutylene Terephthalate (PBT) Glass Filled	0.154 in	3.9 mm	Straight Tapered
Amphenol ICC (FCI) HLW5R-6C7LF	5	Black		Kinked Pin	5	Tin	CIC	Phosphor Bronze	Contacts Top	100 V	Right Angle Through Hole	1 mm	0.039 in			UL94 V-0	-55 C	85 °C	Polybutylene Terephthalate (PBT) Glass Filled	0.154 in	3.9 mm	Tapered	0.3 mm
