NCP164 Series

300mA LDO Regulator, Ultra-Low Noise, High PSRR with Power Good

Catalog

300mA LDO Regulator, Ultra-Low Noise, High PSRR with Power Good

Part	Current - Output	Number of Regulators	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Protection Features	Output Type	Supplier Device Package	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed)	PSRR [Min]	PSRR [Max]	Voltage - Input (Max) [Max]	Mounting Type	Output Configuration	Voltage - Output (Max)	Package / Case	Output Type	Qualification	Grade	Operating Temperature	Voltage - Output (Max) [Max]
ON Semiconductor NCP164AMT180TAG	300 mA	1	Enable Power Good	150 °C	-40 °C	Over Current Over Temperature	1.81 mOhm	6-WDFN (2x2)	0.255 V	1.8 V	61 dB	83 dB	5.5 V	Surface Mount	Positive
ON Semiconductor NCP164CSNADJT1G	300 mA	1	Enable	150 °C	-40 °C	Over Current Over Temperature		5-TSOP		1.1 V	61 dB	83 dB	5 V	Surface Mount	Positive	5 V	SOT-23-5 Thin TSOT-23-5	Adjustable	AEC-Q100	Automotive
ON Semiconductor NCP164ASNADJT1G	300 mA	1	Enable Power Good			Over Current Over Temperature		5-TSOP	0.295 V	1.1 V	61 dB	83 dB	5.5 V	Surface Mount	Positive		SOT-23-5 Thin TSOT-23-5	Adjustable	AEC-Q100	Automotive	150 °C	5.5 V
ON Semiconductor NCP164CSN300T1G	300 mA	1	Enable	150 °C	-40 °C	Over Current Over Temperature	1.81 mOhm	5-TSOP			61 dB	83 dB	5 V	Surface Mount	Positive		SOT-23-5 Thin TSOT-23-5		AEC-Q100	Automotive
ON Semiconductor NCP164AMT330TAG	300 mA	1	Enable Power Good			Over Current Over Temperature	1.81 mOhm	6-WDFN (2x2)	0.17 V	3.3 V	61 dB	83 dB	5.5 V	Surface Mount	Positive				AEC-Q100	Automotive	150 °C
ON Semiconductor NCP164AMT120TAG	300 mA	1	Enable Power Good	150 °C	-40 °C	Over Current Over Temperature	1.81 mOhm	6-WDFN (2x2)		1.2 V	61 dB	83 dB	5.5 V	Surface Mount	Positive
ON Semiconductor NCP164ASN180T1G	300 mA	1	Enable Power Good			Over Current Over Temperature	1.81 mOhm	5-TSOP	0.255 V	1.8 V	61 dB	83 dB	5.5 V	Surface Mount	Positive		SOT-23-5 Thin TSOT-23-5		AEC-Q100	Automotive	150 °C
ON Semiconductor NCP164AMT280TAG	300 mA	1	Enable Power Good	150 °C	-40 °C	Over Current Over Temperature	1.81 mOhm	6-WDFN (2x2)	0.185 V	2.8 V	61 dB	83 dB	5.5 V	Surface Mount	Positive

Catalog

300mA LDO Regulator, Ultra-Low Noise, High PSRR with Power Good

Key Features

• 1.6V to 5.5V input voltage

• PSRR: 85 dB at 1 kHz

• Low VDO at 2.8V @80mV max dropout

• Ultra-Low Noise: 9µVRMS

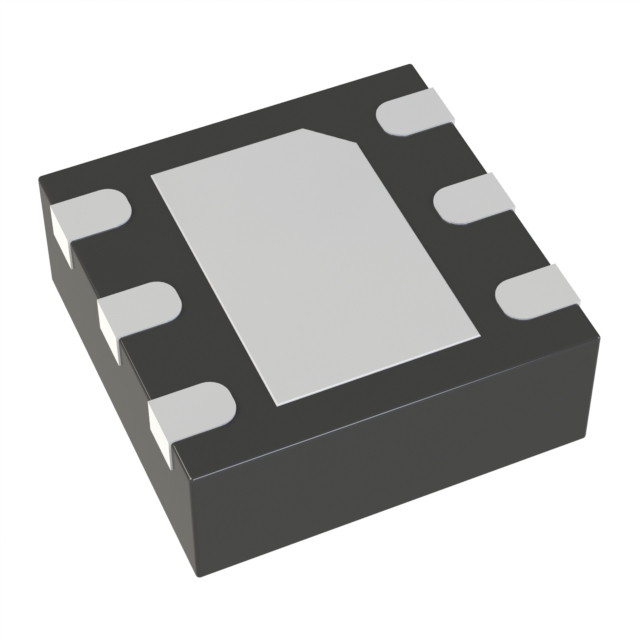

• WDFN6_2 x 2mm & TSOP-5

Description

The NCP164 is a next generation of high PSRR, ultra−low noise LDO capable of supplying 300 mA output current. Designed to meet the requirements of RF and sensitive Analog circuits, the NCP164 device provides ultra−low noise, high PSRR and low quiescent current. The device also offer excellent load/line transients. The NCP164 is designed to work with a 1µF input and a 1µF output ceramic capacitor. It is available in WDFN6 0.65P, 2 x 2 mm and TSOP-5 packaging.
