LHC-06 Series
Manufacturer: Adam Tech
Beta
⌘K

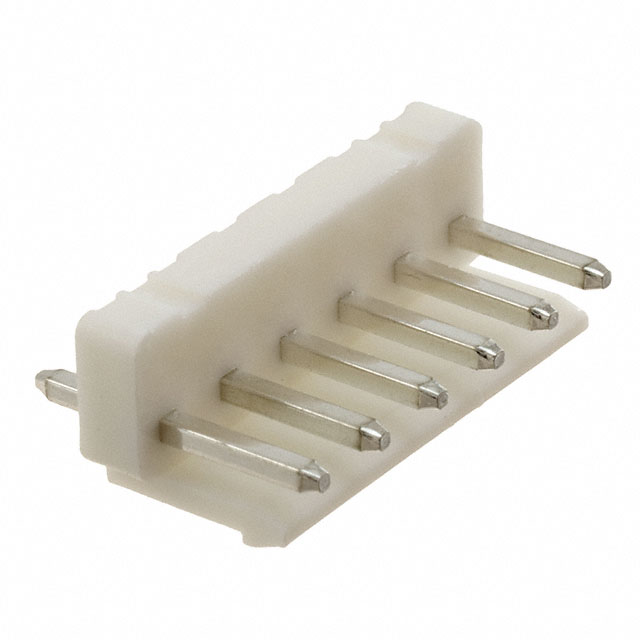

CONN HEADER VERT 6POS 3.96MM
| Part | Number of Positions | Voltage Rating | Style | Termination | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height [z] | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Connector Type | Pitch - Mating | Pitch - Mating | Contact Material | Insulation Color | Contact Length - Mating | Contact Length - Mating | Mounting Type | Contact Finish - Post | Current Rating (Amps) | Contact Type | Number of Rows | Contact Shape | Fastening Type | Material Flammability Rating | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 6 | 250 VAC | Board to Cable/Wire | Solder | All | 3.7 mm | 0.146 " | 0.126 " | 3.2 mm | 85 °C | -25 °C | Shrouded - 1 Wall | Header | 3.96 mm | 0.156 in | Brass | White | 0.303 in | 7.7 mm | Through Hole | Tin | 7 A | Male Pin | 1 | Square | Friction Lock | UL94 V-0 | Nylon 6/6 Polyamide (PA66) |
