RD7 Single Series Series
Manufacturer: Adam Tech
Beta
⌘K

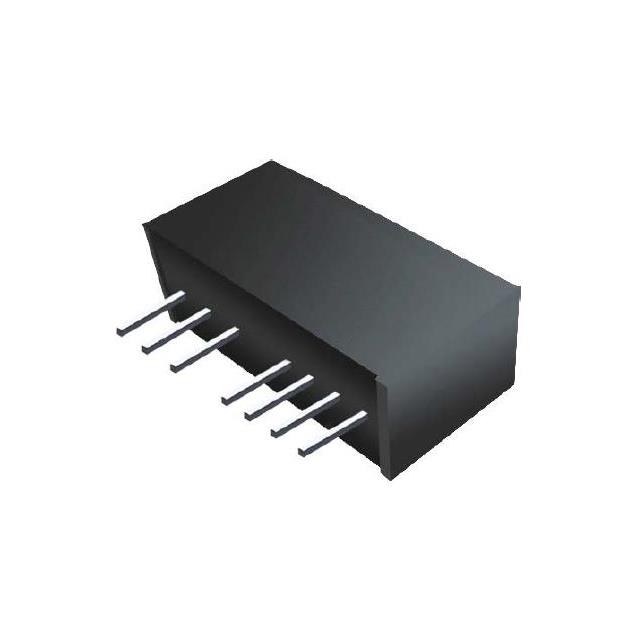

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC CONVERTER, ISOLATED MODULE, SINGLE OUTPUT, 18V-36VDC INPUT, 5VDC, 2W
| Part | Voltage - Isolation | Number of Outputs | Applications | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input (Max) [Max] | Power (Watts) | Package / Case | Type | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Efficiency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 3000 V | 1 | ITE (Commercial) | 5 V | 85 °C | -40 C | 0.36 in | 0.44 in | 0.86 " | 21.8 mm | 9.2 mm | 11.1 mm | 36 V | 2 W | 8-SIP Module 6 Leads | Isolated Module | 400 mA | 18 V | 75 % | Through Hole |
