723W-X2 Series
Manufacturer: Qualtek
Beta
⌘K

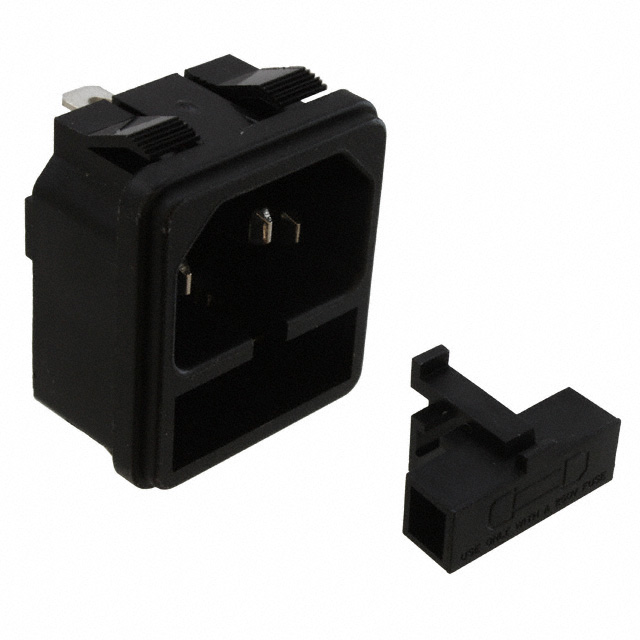

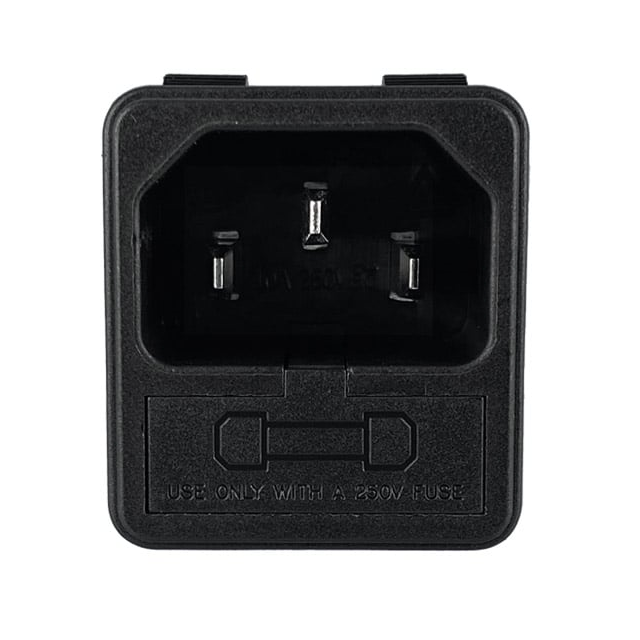

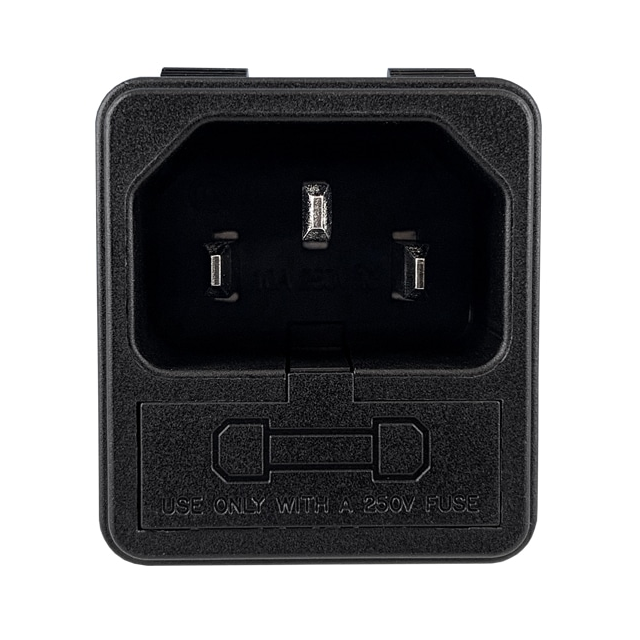

PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Current Rating - Appliance Inlet | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Connector Type | Mounting Type | Approval Agency | Voltage Rating - Appliance Inlet | Termination | Termination | Termination | Filter Type | Fuse Holder, Drawer | Connector Style | Accomodates a Fuse | Panel Cutout Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 10 A | 0.79 mm | 0.079 " | 0.031 " | 2 mm | Receptacle Male Blades - Module | Panel Mount Snap-In | CSA TUV UL | 250 VAC | 0.189 " | 4.8 mm | Quick Connect | Unfiltered - Commercial | Twin Fused | IEC 320-C14 | Variable Size | |
 Qualtek | 10 A | 0.79 mm | 0.079 " | 0.031 " | 2 mm | Receptacle Male Blades - Module | Panel Mount Snap-In | CSA TUV UL | 250 VAC | 0.11 " | 2.8 mm | Quick Connect | Unfiltered - Commercial | Twin Fused | IEC 320-C14 | Variable Size | |
 Qualtek | 10 A | 0.79 mm | 0.079 " | 0.031 " | 2 mm | Receptacle Male Blades - Module | Panel Mount Snap-In | CSA TUV UL | 250 VAC | 0.25 " | 6.3 mm | Quick Connect | Unfiltered - Commercial | Twin Fused | IEC 320-C14 | Variable Size |
