9243-1553 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

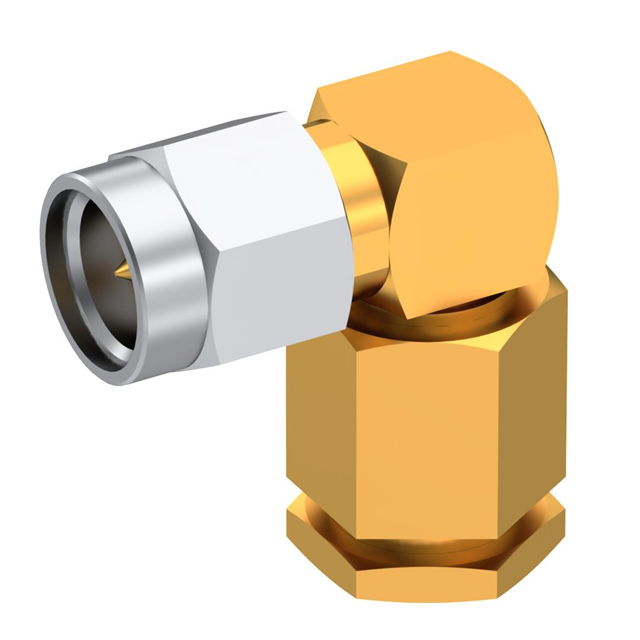

SMA / RIGHT ANGLE PLUG MALE CLAM
| Part | Body Finish | Center Contact Plating | Mating Cycles | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Center Contact Material | Shield Termination | Impedance | Connector Style | Connector Type | Contact Termination | Number of Ports | Housing Color | Cable Group | Mounting Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Gold | 500 | Stainless Steel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Threaded | Beryllium Copper | Clamp | 50 Ohms | SMA | Plug Male Pin | Solder | 1 | Gold | RG-316 Double Braid | Free Hanging (In-Line) Right Angle | 12.4 GHz |
