M3031 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

INDUSTRIAL PRESSURE SENSORS PRESS XDCR MSP-300-2K5-P-3-N-1

Part	Output Type	Port Style	Output [Max]	Output [Min]	Maximum Pressure	Maximum Pressure	Pressure Type	Termination Style	Package / Case	Accuracy	Port Size	Port Size	Port Size	Features	Operating Pressure	Operating Pressure	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure [Max]	Maximum Pressure [Max]

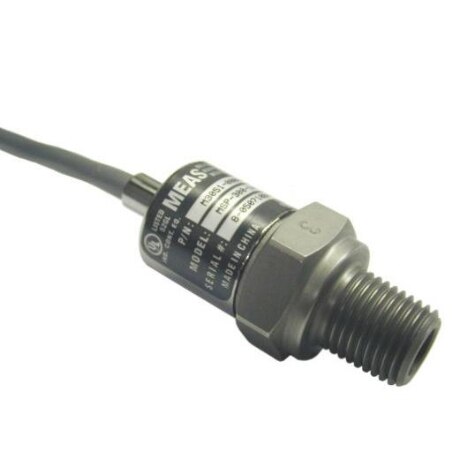

TE Connectivity AMP Connectors M3031-000005-2K5PG	Analog Voltage	Threaded	4.5 V	0.5 V	5000 PSI	34473.79 kPa	Vented Gauge	Cable	Cylinder	1 %	Male NPT	0.25 "	0.25 in	Amplified Output Temperature Compensated	2500 PSI	17236.89 kPa	Industrial Automation	4.75 V	5.25 V	85 °C	-20 ░C
TE Connectivity AMP Connectors M3031-000005-01KPG	Analog Voltage	Threaded	4.5 V	0.5 V		13789.51 kPa	Vented Gauge	Cable	Cylinder Threaded	1 %	Male NPT	0.25 "	0.25 in	Amplified Output Temperature Compensated	1000 PSI	6894.76 kPa	Industrial Automation	4.75 V	5.25 V	85 °C	-20 ░C	2000 PSI
TE Connectivity AMP Connectors M3031-000005-10KPG	Analog Voltage	Threaded	4.5 V	0.5 V	20000 PSI	137895.15 kPa	Vented Gauge	Cable	Cylinder Threaded	1 %	Male NPT	0.25 "	0.25 in	Amplified Output Temperature Compensated	10000 PSI	68947.57 kPa	Industrial Automation	4.75 V	5.25 V	85 °C	-20 ░C
TE Connectivity AMP Connectors M3031-000005-05KPG	Analog Voltage	Threaded	4.5 V	0.5 V			Vented Gauge	Cable	Cylinder	1 %	Male NPT	0.25 "	0.25 in	Amplified Output Temperature Compensated	5000 PSI	34473.79 kPa	Industrial Automation	4.75 V	5.25 V	85 °C	-20 ░C	10000 PSI	68947.57 kPa
TE Connectivity AMP Connectors M3031-000005-500PG	Analog Voltage	Threaded	4.5 V	0.5 V	1000 PSI	6894.76 kPa	Vented Gauge	Cable	Cylinder Threaded	1 %	Male NPT	0.25 "	0.25 in	Amplified Output Temperature Compensated	500 PSI	3447.38 kPa		4.75 V	5.25 V	85 °C	-20 ░C
