FSA150024 Series
Manufacturer: Inventus Power
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

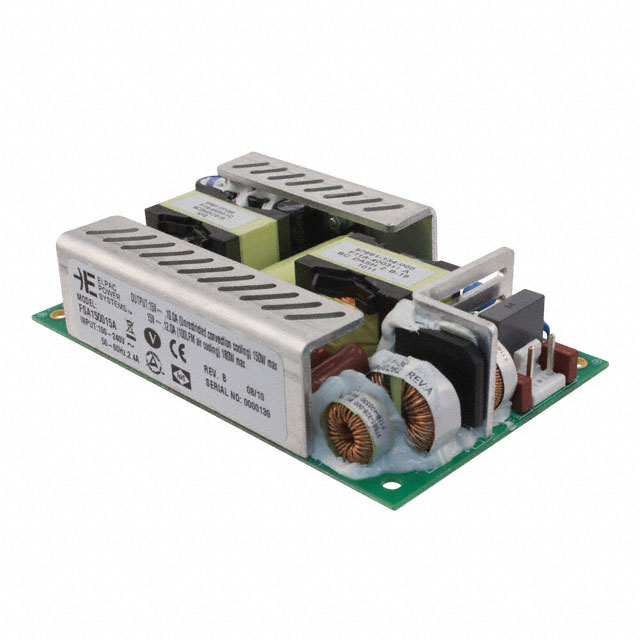

AC/DC POWER SUPPLY SINGLE-OUT 24V 6.3A 150W
| Part | Minimum Load Required | Operating Temperature (Max) | Operating Temperature (Min) | Efficiency | Type | Approval Agency | Size / Dimension Height | Size / Dimension Length | Size / Dimension Width | Current - Output 1 | Features | Mounting Type | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Power (Watts) | Voltage - Output 1 | Number of Outputs | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Inventus Power | No | 70 °C | 0 °C | 91 % | Open Frame | CB CE | 1.22 in | 5 in | 3 in | 6.3 A | Universal Input | Chassis Mount | 85 VAC | 264 V | 150 W 180 W | 24 V | 1 | ITE (Commercial) |
