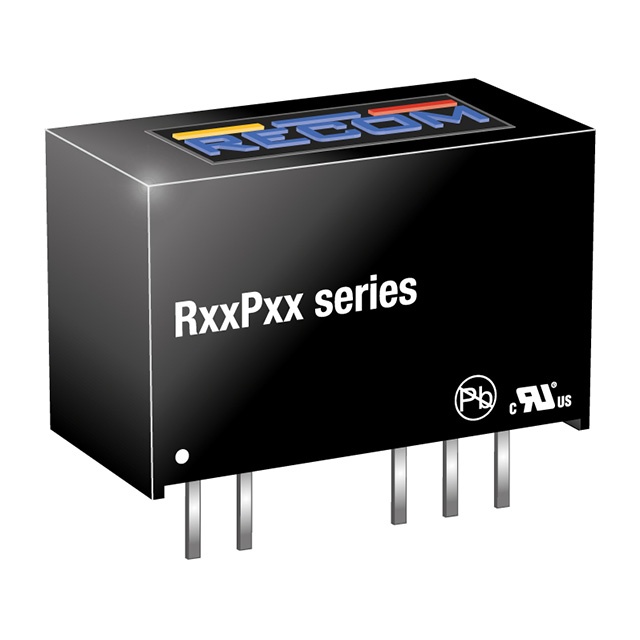

RxxPxx Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W 09VIN 05VOUT CONT SHORT CIR PRTCT

...

Part	Applications	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Type	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Voltage - Input (Min) [Min]	Number of Outputs	Efficiency	Package / Case	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)

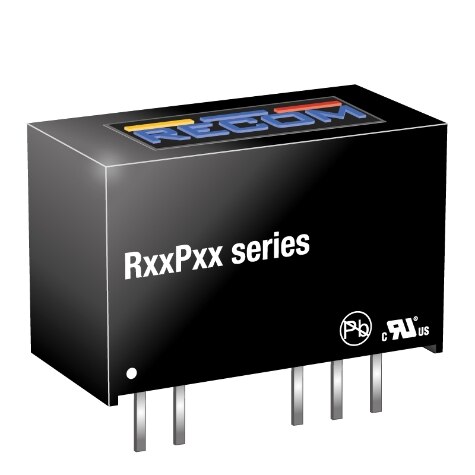

Recom Power R09P05S/P/X2	ITE (Commercial) Medical	9.9 V	200 mA	Isolated Module	5 V	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	6.4 kV	90 °C	-40 C	SCP	Through Hole	8.1 V	1	75 %	7-SIP Module 4 Leads
Recom Power R09P09S/P	ITE (Commercial) Medical	9.9 V	111 mA	Isolated Module	9 V	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.7 mm	6.4 kV	90 °C	-40 C	SCP	Through Hole	8.1 V	1	75 %	7-SIP Module 4 Leads
Recom Power R09P05S	ITE (Commercial) Medical	9.9 V	200 mA	Isolated Module	5 V	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.7 mm	6.4 kV	90 °C	-40 C	SCP	Through Hole	8.1 V	1	75 %	7-SIP Module 4 Leads
Recom Power R24P05D	ITE (Commercial) Medical	26.4 V		Isolated Module	5 V	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.7 mm	6.4 kV	90 °C	-40 C	SCP	Through Hole	21.6 V	2	75 %	7-SIP Module 5 Leads	100 mA	100 mA	-5 V
Recom Power R05P3.3S/P	ITE (Commercial) Medical	5.5 V	303 mA	Isolated Module	3.3 V	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.7 mm	6.4 kV	90 °C	-40 C	SCP	Through Hole	4.5 V	1	70 %	7-SIP Module 4 Leads
Recom Power R12P09S/P	ITE (Commercial) Medical	13.2 V	111 mA	Isolated Module	9 V	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.7 mm	6.4 kV	90 °C	-40 C	SCP	Through Hole	10.8 V	1	75 %	7-SIP Module 4 Leads
Recom Power R24P05S/X2	ITE (Commercial) Medical	26.4 V	200 mA	Isolated Module	5 V	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	6.4 kV	90 °C	-40 C	SCP	Through Hole	21.6 V	1	75 %	7-SIP Module 4 Leads
Recom Power R24P09D/P	ITE (Commercial) Medical	26.4 V		Isolated Module	9 V	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.7 mm	6.4 kV	90 °C	-40 C	SCP	Through Hole	21.6 V	2	75 %	7-SIP Module 5 Leads		55 mA	-9 V	55 mA
Recom Power R09P09D/P	ITE (Commercial) Medical	9.9 V		Isolated Module	9 V	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.7 mm	6.4 kV	90 °C	-40 C	SCP	Through Hole	8.1 V	2	75 %	7-SIP Module 5 Leads		55 mA	-9 V	55 mA
Recom Power R24P12S/X2	ITE (Commercial) Medical	26.4 V	84 mA	Isolated Module	12 V	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	6.4 kV	90 °C	-40 C	SCP	Through Hole	21.6 V	1	75 %	7-SIP Module 4 Leads
