RASMID™ Series - Transient Voltage Suppressor
RASMID™ Series - Transient Voltage Suppressor
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Bidirectional Channels [custom] | Capacitance @ Frequency | Applications | Type | Voltage - Clamping (Max) @ Ipp [Max] | Voltage - Breakdown (Min) [Min] | Package / Case | Current - Peak Pulse (10/1000µs) | Power Line Protection | Voltage - Reverse Standoff (Typ) | Supplier Device Package | Power - Peak Pulse | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

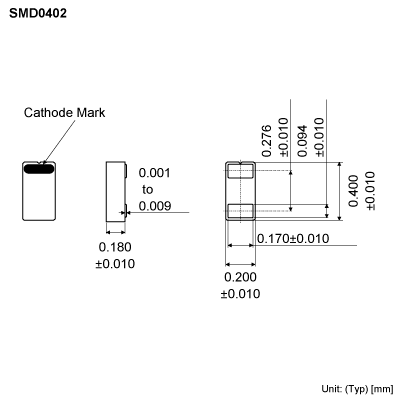

 Rohm Semiconductor | Surface Mount | -55 °C | 150 °C | 1 | 4.3 pF | General Purpose | Zener | 7.5 V | 4 V | 2-SMD No Lead | 2.8 A | 3.3 V | SMD0402 | 21 W | ||

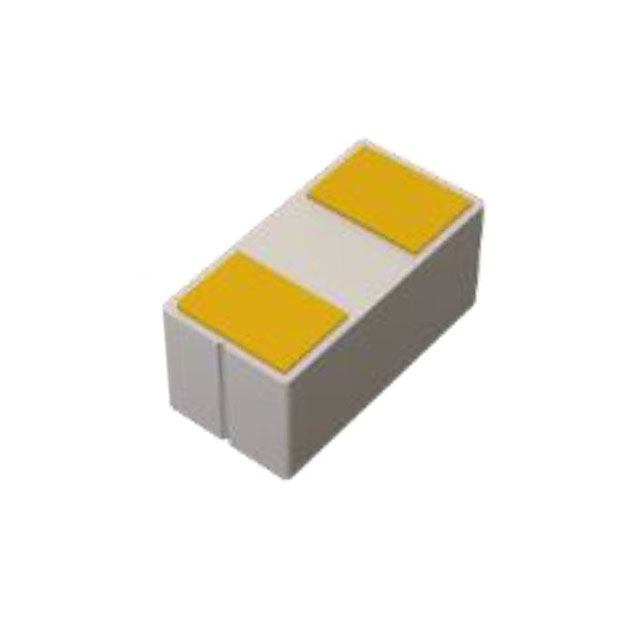

 Rohm Semiconductor | Surface Mount | -55 °C | 150 °C | 1 | General Purpose | Zener | 8 V | 4 V | 0201 | 3.5 A | 3.3 V | DSN0603-2 SMD0603 SOD-962 | 28 W | 0603 Metric | ||
 Rohm Semiconductor | Surface Mount | -55 °C | 150 °C | 1 | General Purpose | Zener | 7.6 V | 4 V | 2-SMD No Lead | 5 A | 3.3 V | SMD0402 | 38 W | |||
 Rohm Semiconductor | Surface Mount | -55 °C | 150 °C | 1 | General Purpose | Zener | 19 V | 6 V | 0201 | 3.5 A | 3.3 V | DSN0603-2 SMD0603 SOD-962 | 66 W | 0603 Metric | ||
Rohm Semiconductor | Surface Mount | -55 °C | 150 °C | 1 | 0.25 pF | General Purpose | Zener | 19 V | 6 V | 0201 | 3.5 A | 3.3 V | DSN0603-2 SMD0603 SOD-962 | 66 W | 0603 Metric | |
 Rohm Semiconductor | Surface Mount | -55 °C | 150 °C | 1 | General Purpose | Zener | 8 V | 4 V | 2-SMD No Lead | 3.3 A | 3.3 V | SMD0402 | 26.5 W | |||
 Rohm Semiconductor | Surface Mount | -55 °C | 150 °C | 1 | General Purpose | Zener | 8.5 V | 4 V | 0201 | 8.2 A | 3.3 V | DSN0603-2 SMD0603 SOD-962 | 70 W | 0603 Metric |
