BQ24001 Series
Manufacturer: Texas Instruments
Beta
⌘K
LINEAR CHARGE MANAGEMENT LI-ION 1200MA 4.1V/4.2V 20-PIN HTSSOP EP TUBE
| Part | Current - Charging | Charge Current - Max [Max] | Battery Pack Voltage | Number of Cells | Package / Case | Package / Case [custom] | Package / Case | Fault Protection | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Mounting Type | Voltage - Supply (Max) [Max] | Programmable Features | Battery Chemistry | Function | Utilized IC / Part | Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Constant | 1.2 A | 4.2 V | 1 | 20-PowerTSSOP | 4.4 mm | 0.173 in | Over Temperature | 70 °C | -40 °C | 20-HTSSOP | Surface Mount | 10 V | Current Timer | Lithium Ion | ||||

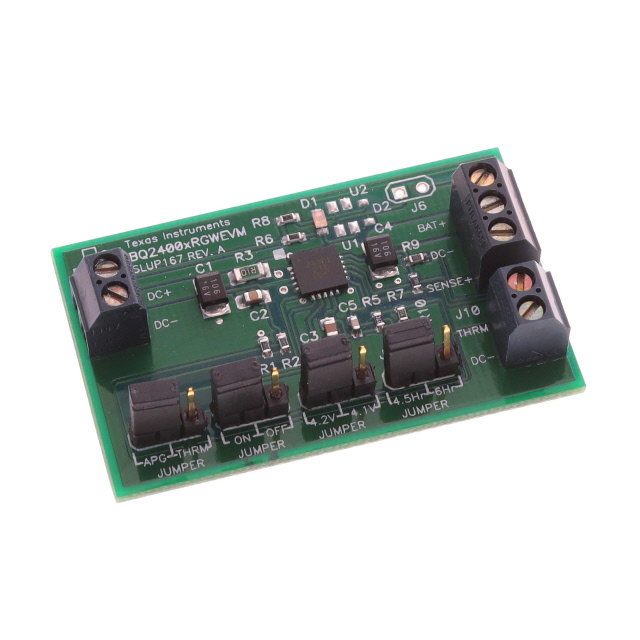

 Texas Instruments | Battery Charger | BQ24001RGW | Power Management | Board(s) | |||||||||||||||
Texas Instruments | Constant | 1.2 A | 4.2 V | 1 | 20-PowerTSSOP | 4.4 mm | 0.173 in | Over Temperature | 70 °C | -40 °C | 20-HTSSOP | Surface Mount | 10 V | Current Timer | Lithium Ion | ||||
Texas Instruments | Constant | 1.2 A | 4.2 V | 1 | 20-PowerTSSOP | 4.4 mm | 0.173 in | Over Temperature | 70 °C | -40 °C | 20-HTSSOP | Surface Mount | 10 V | Current Timer | Lithium Ion | ||||
 Texas Instruments | Constant | 1.2 A | 4.2 V | 1 | 20-VQFN Exposed Pad | Over Temperature | 70 °C | -40 °C | 20-VQFN (5x5) | Surface Mount | 10 V | Current Timer | Lithium Ion |
