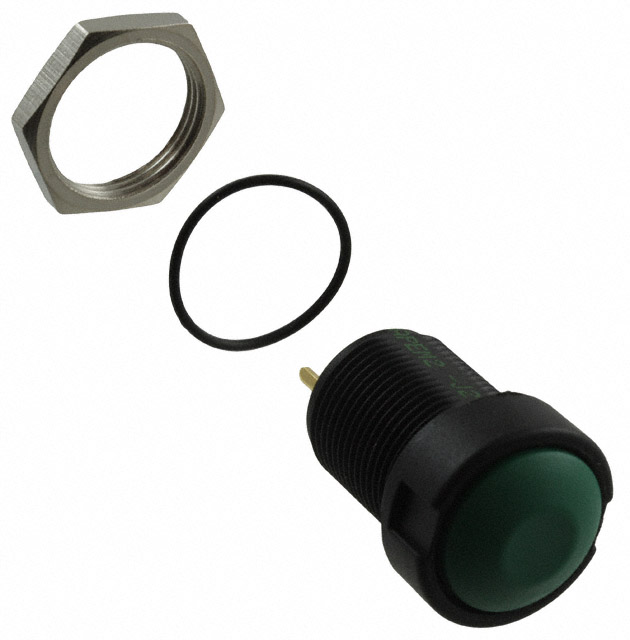

IMR7P Series
Manufacturer: APEM Inc.
Beta
⌘K
PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES
| Part | Electrical Life | Mechanical Life | Termination Style | Actuator Marking | Actuator Type | Switch Function | Panel Cutout Dimensions [diameter] | Features | Ingress Protection | Circuit | Color - Actuator/Cap | Type | Mounting Type | Voltage Rating - DC | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | 25000 Steps | 1000000 Cycles | PC Pin | No Marking | Button Domed Round | On-Mom | 13.6 mm | Epoxy Sealed Terminals | IP67 - Dust Tight Waterproof | SPDT | Green | Standard | Panel Mount Front | 28 V | 3 A | 85 °C | -40 C |
 APEM Inc. | 25000 Steps | 1000000 Cycles | PC Pin | No Marking | Button Domed Round | On-Mom | 13.6 mm | Epoxy Sealed Terminals | IP67 - Dust Tight Waterproof | SPDT | White | Standard | Panel Mount Front | 28 V | 3 A | 85 °C | -40 C |
 APEM Inc. | 25000 Steps | 1000000 Cycles | PC Pin | No Marking | Button Domed Round | On-Mom | 13.6 mm | Epoxy Sealed Terminals | IP67 - Dust Tight Waterproof | SPDT | Green | Standard | Panel Mount Front | 28 V | 3 A | 85 °C | -40 C |
