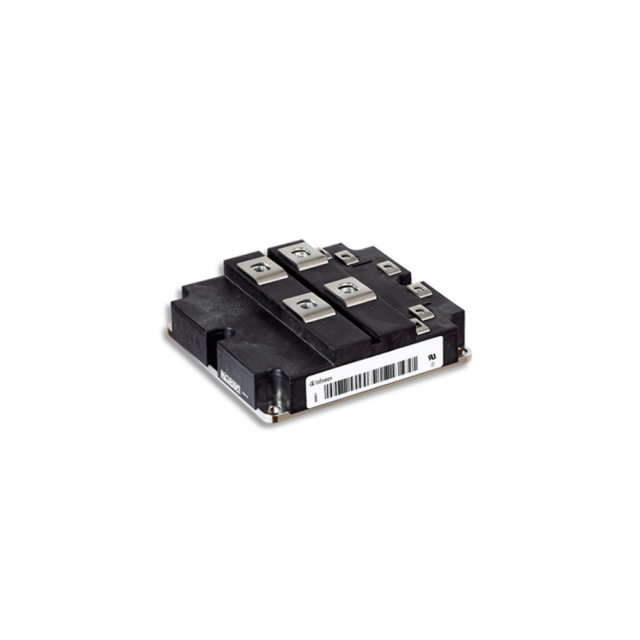

FF800R12 Series

Manufacturer: INFINEON

Catalog

IGBT MOD 1200V 1200A 3900W

Part	Supplier Device Package	Input	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Mounting Type	Vce(on) (Max) @ Vge, Ic	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Input Capacitance (Cies) @ Vce	Package / Case	Configuration	IGBT Type
INFINEON FF800R12KE3NOSA1	Module	Standard	125 °C	-40 C	5 mA	3900 W	Chassis Mount	2.15 V	1200 A	1200 V	57 nF	Module	Single
INFINEON FF800R12KE7PHPSA1	AG-62MMHB	Standard					Chassis Mount					Module	Half Bridge	Trench Field Stop
INFINEON FF800R12KF4	Module	Standard	125 °C	-40 C	16 mA	5000 W	Chassis Mount	3.2 V	800 A	1200 V	55 nF	Module	2 Independent
