KWB Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED

Part	Package / Case	Capacitance	Applications	Tolerance	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Lead Spacing	Lead Spacing	Mounting Type	Lifetime @ Temp.	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Chemi-Con EKWB401ELL680MJ45S	Can Radial	68 µF	General Purpose	20 %	400 V	1.85 in	47 mm	0.394 in	10 mm	Polar	0.197 "	5 mm	Through Hole	5000 Hrs	999 mA	-40 C	105 ░C	555 mA
Chemi-Con EKWB451ELL560MJ45S	Can Radial	56 µF	General Purpose	20 %	450 V			0.394 in	10 mm	Polar	0.197 "	5 mm	Through Hole	5000 Hrs	909 mA	-40 C	105 ░C	505 mA	1.772 "	45 mm

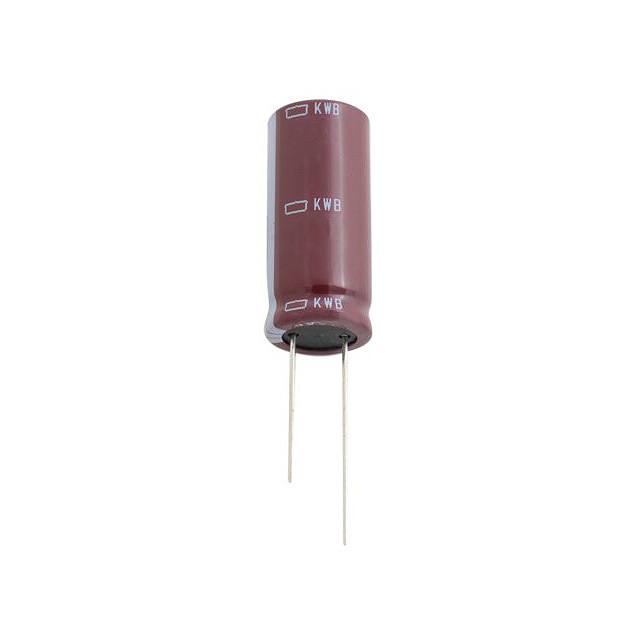

Chemi-Con EKWB401ELL121MLN3S	Can Radial	120 µF	General Purpose	20 %	400 V			0.63 in	16 mm	Polar	0.295 in	7.5 mm	Through Hole	5000 Hrs	1.185 A	-40 C	105 ░C	790 mA	1.319 in		33.5 mm
Chemi-Con EKWB401ELL390MJ30S	Can Radial	39 µF	General Purpose	20 %	400 V			0.394 in	10 mm	Polar	0.197 "	5 mm	Through Hole	5000 Hrs	657 mA	-40 C	105 ░C	365 mA	1.26 in	32 mm
