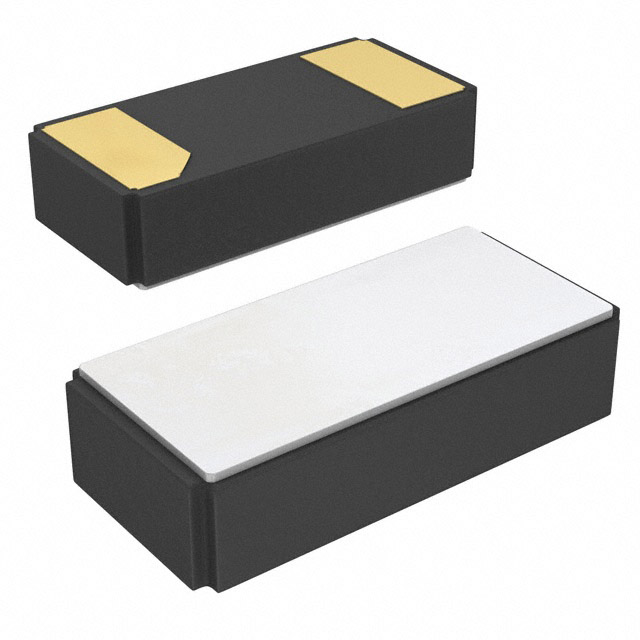

9HT10 Series

Catalog

3.0X1.5 - 32.768KHZ QUARTZ XTAL / CERAMIC, +/-20PPM @25C, 6PF

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Frequency Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	ESR (Equivalent Series Resistance)	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Load Capacitance	Operating Mode	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]
TXC CORPORATION 9HT10-32.768KDZB-T	Surface Mount	1.5 mm	3.2 mm	0.126 in	0.059 "	2-SMD No Lead	20 ppm	0.033 in	0.85 mm	kHz Crystal (Tuning Fork)	70 kOhms	0.032768 MHz	85 °C	-40 C	6 pF	Fundamental	1.5	2-SMD	3.2
