SMM Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 220UF 400 VOLT

Part	Mounting Type	Package / Case	Lifetime @ Temp.	Applications	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Capacitance	Voltage - Rated	Ripple Current @ High Frequency	Polarization	Size / Dimension	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]

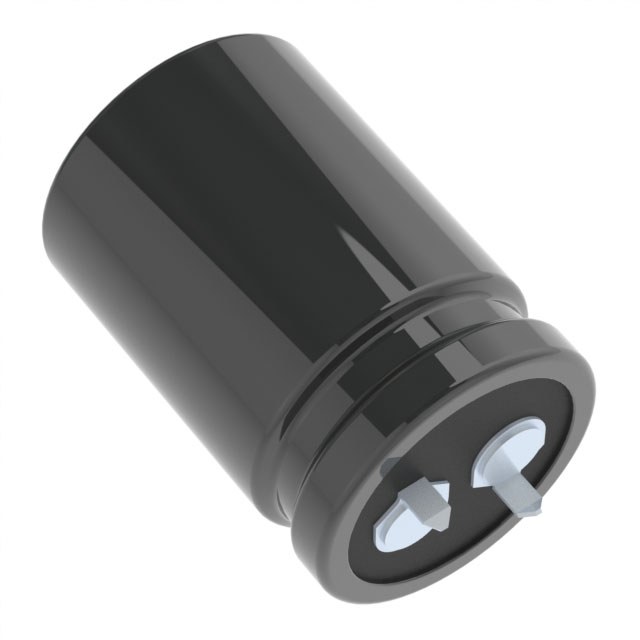

Chemi-Con ESMM401VSN221MQ35S	Through Hole	Radial Can - Snap-In	3000 Hrs	General Purpose	20 %	85 °C	-25 °C	25.4 mm	1 "	37 mm	1.457 in	0.394 in	10 mm	1.507 Ohm	1.64 A	220 µF	400 V	2.3452 A	Polar

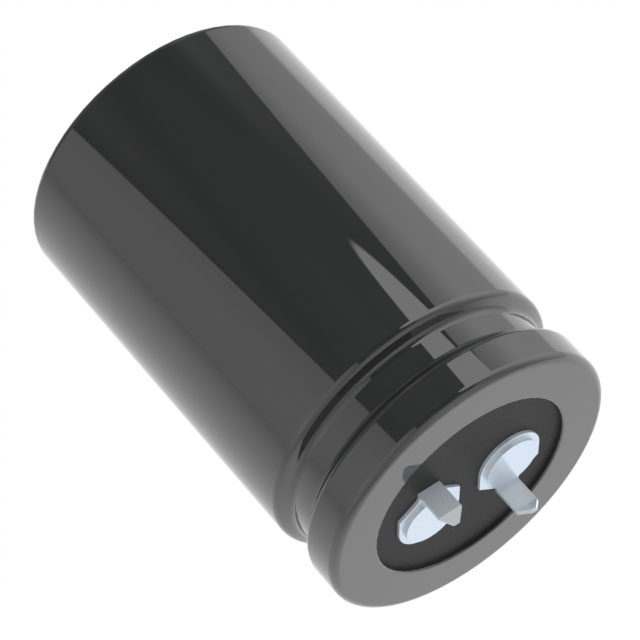

Chemi-Con ESMM101VSN392MR45T	Through Hole	Radial Can - Snap-In	3000 Hrs	General Purpose	20 %	85 °C	-25 °C		1.181 "			0.394 in	10 mm			3900 µF	100 V		Polar	30 mm	1.85 in	47 mm
Chemi-Con ESMM251VSN681MR30T	Through Hole	Radial Can - Snap-In	3000 Hrs	General Purpose	20 %	85 °C	-25 °C		1.181 "		1.181 "	0.394 in	10 mm	303 mOhm	2.71 A	680 µF	250 V	4.065 A	Polar	30 mm			30 mm
Chemi-Con ESMM351VSN102MA50S	Through Hole	Radial Can - Snap-In	3000 Hrs	General Purpose	20 %	85 °C	-25 °C	35 mm	1.378 "			0.394 in	10 mm	249 mOhm	3.6 A	1000 µF	350 V	5.148 A	Polar		2.047 in	52 mm
