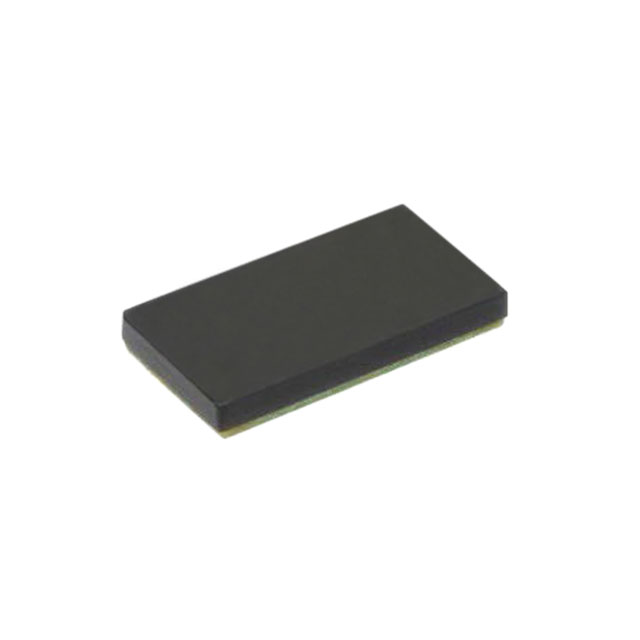

ULVT012 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 0.6-5.5V 66W
| Part | Efficiency | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Package / Case | Voltage - Input (Min) [Min] | Applications | Power (Watts) | Voltage - Output 1 [Min] [custom] | Voltage - Output 1 [Max] [custom] | Features | Control Features | Number of Outputs | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | 92 % | 12 A | 14.4 V | 16-SMD Module | 3 V | ITE (Commercial) | 66 W | 0.6 V | 5.5 V | OCP OTP Remote On/Off SCP UVLO | Active Low Enable | 1 | 0.8 " | 0.12 " | 0.45 in | 20.3 mm | 11.4 mm | 3 mm | Non-Isolated PoL Module | Surface Mount | -40 C | 105 ░C |
OmniOn Power™ | 92 % | 12 A | 14.4 V | 16-SMD Module | 3 V | ITE (Commercial) | 66 W | 0.6 V | 5.5 V | OCP OTP Remote On/Off SCP UVLO | Active Low Enable | 1 | 0.8 " | 0.12 " | 0.45 in | 20.3 mm | 11.4 mm | 3 mm | Non-Isolated PoL Module | Surface Mount | -40 C | 105 ░C |
