FKCVR Series

Catalog

PLUGGABLE TERMINAL BLOCKS 18 POS 5MM PITCH PLUG 24-12AWG SPRING

Part	Housing Material	Insulation Height	Insulation Height	Material Flammability Rating	Wire Strip Length	Voltage - UL	Voltage - IEC	Current - UL	Mounting Type	Pitch	Pitch	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Levels	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Plug Wire Entry	Current - IEC	Number of Positions	Contact Mating Finish	Color	Type	Positions Per Level	Termination Style	Features	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
Phoenix Contact 1909870	Polyamide (PA) Nylon	16.8 mm	0.661 "	UL94 V-0	10 mm	300 V	630 V	10 A	Free Hanging (In-Line)	0.197 in	5 mm	2.5 mm²	0.2 mm²	1	12 AWG	26 AWG	180 °	12 A	18	Tin	Green	Plug Female Sockets	18	Push-In Spring Screwless - Leg Spring
Phoenix Contact 1909977	Polyamide (PA) Nylon	16.8 mm	0.661 "	UL94 V-0	10 mm	300 V	630 V	10 A	Free Hanging (In-Line)	0.197 in	5 mm	2.5 mm²	0.2 mm²	1	12 AWG	26 AWG	180 °	12 A	11	Tin	Green	Plug Female Sockets	11	Push-In Spring Screwless - Leg Spring	Mating Flange Retention Latches (Non-Wire Side)
Phoenix Contact 1909919	Polyamide (PA) Nylon	16.8 mm	0.661 "	UL94 V-0	10 mm	300 V	630 V	10 A	Free Hanging (In-Line)	0.197 in	5 mm	2.5 mm²	0.2 mm²	1	12 AWG	26 AWG	180 °	12 A	5	Tin	Green	Plug Female Sockets	5	Push-In Spring Screwless - Leg Spring	Mating Flange Retention Latches (Non-Wire Side)	2.5 mm˛	0.2 mm˛
Phoenix Contact 1909948	Polyamide (PA) Nylon	16.8 mm	0.661 "	UL94 V-0	10 mm	300 V	630 V	10 A	Free Hanging (In-Line)	0.197 in	5 mm	2.5 mm²	0.2 mm²	1	12 AWG	26 AWG	180 °	12 A	8	Tin	Green	Plug Female Sockets	8	Push-In Spring Screwless - Leg Spring	Mating Flange Retention Latches (Non-Wire Side)

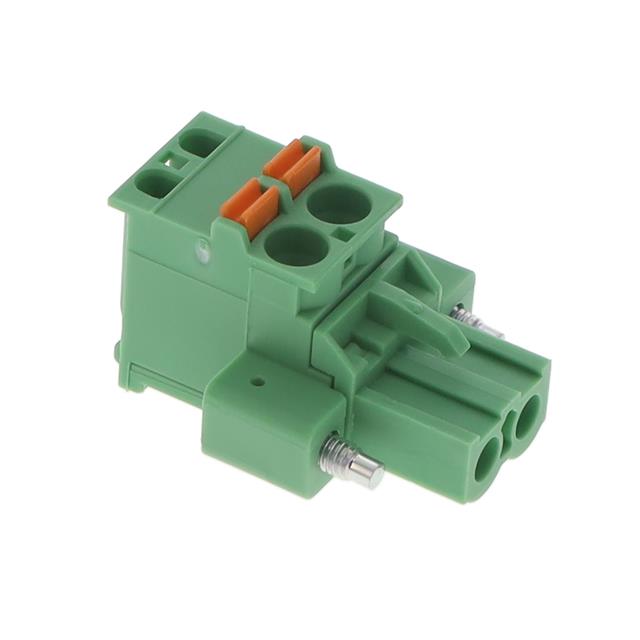

Phoenix Contact 1874109	Polyamide (PA) Nylon	16.8 mm	0.661 "	UL94 V-0	10 mm	300 V	630 V	10 A	Free Hanging (In-Line)	0.2 in	5.08 mm	2.5 mm²	0.2 mm²	1	12 AWG	26 AWG	90 °	12 A	2	Tin	Green	Plug Female Sockets	2	Push-In Spring Screwless - Leg Spring	Mating Flange Retention Latches (Non-Wire Side)	2.5 mm˛	0.2 mm˛
