KA1 Series
Manufacturer: Harwin Inc.
Beta
⌘K

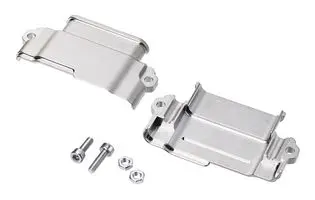

POWER TO THE BOARD KONA METAL SHELL FOR PCT ASSEMBLY - 03 WAY
| Part | Accessory Type | Contact Shape | Style | Features | Number of Rows | Contact Finish - Mating | Contact Finish - Post | Current Rating (Amps) | Termination | Connector Type | Insulation Material | Fastening Type | Number of Positions Loaded | Insulation Color | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] | Contact Length - Post | Contact Length - Post | Shrouding | Pitch - Mating | Pitch - Mating | Mounting Type | Contact Type | Number of Positions | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Backshell | |||||||||||||||||||||||||||

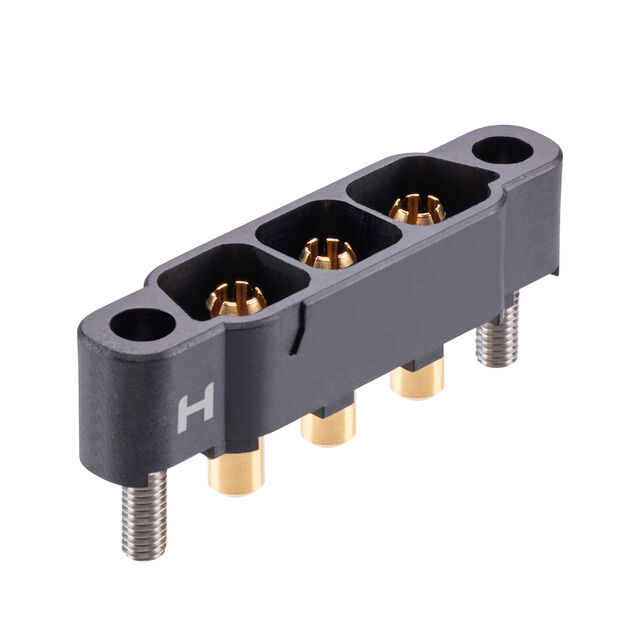

 Harwin Inc. | Circular | Board to Cable/Wire | Pick and Place | 1 | Gold | Gold | 60 A | Solder | Header | Polyphenylene Sulfide (PPS) | Threaded | All | Black | UL94 V-0 | 9.5 mm | 0.374 in | 5.9 mm | 0.232 in | Shrouded - 4 Wall | 8.5 mm | 0.335 in | Through Hole | Male Pin Power | 2 | Beryllium Copper | 150 °C | -65 ░C | |
 Harwin Inc. | Backshell | 4 |
