ILD8150 Series
Manufacturer: INFINEON
Beta
⌘K

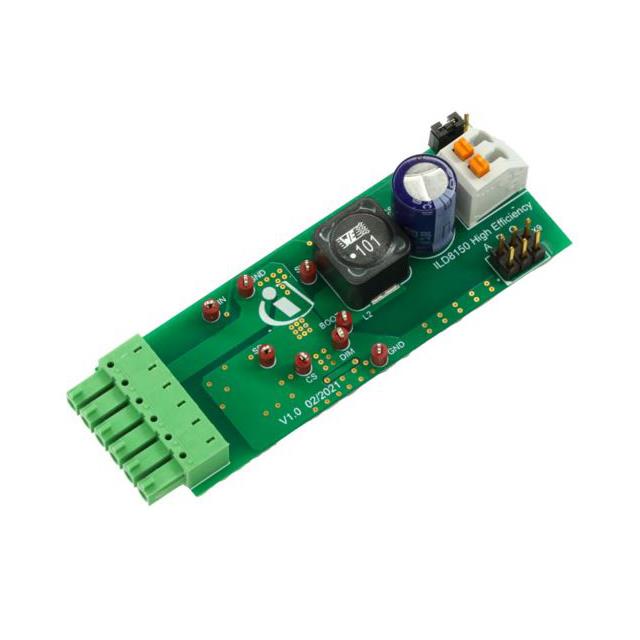

ILD8150E HIGH EFFICIENCY REFERENCE DESIGN WITH HEADROOM VOLTAGE CONTROL
| Part | Outputs and Type | Outputs and Type | Supplied Contents | Current - Output / Channel | Voltage - Input | Voltage - Output [Max] | Voltage - Output [Min] | Utilized IC / Part | Contents | Features | Dimming | Frequency | Supplier Device Package | Internal Switch(s) | Number of Outputs | Voltage - Supply (Max) [Max] | Package / Case | Package / Case [y] | Package / Case [x] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Topology | Type | Voltage - Supply (Min) [Min] | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | 1.5 A | 80 V | 59 V | 30 V | ILD8150E | Board(s) | Dimmable | |||||||||||||||||
 INFINEON | 1.5 A | PWM | 2 MHz | PG-DSO-8-27 | 1 | 80 V | 8-SOIC Exposed Pad | 3.9 mm | 0.154 in | -40 °C | 150 °C | Surface Mount | Step-Down (Buck) | DC DC Regulator | 8 V | ||||||||||||
 INFINEON | 1.5 A | PWM | 2 MHz | 1 | 80 V | 8-SOIC | -40 °C | 150 °C | Surface Mount | Step-Down (Buck) | DC DC Regulator | 8 V | 0.154 in | 3.9 mm |
