5433 Series

Catalog

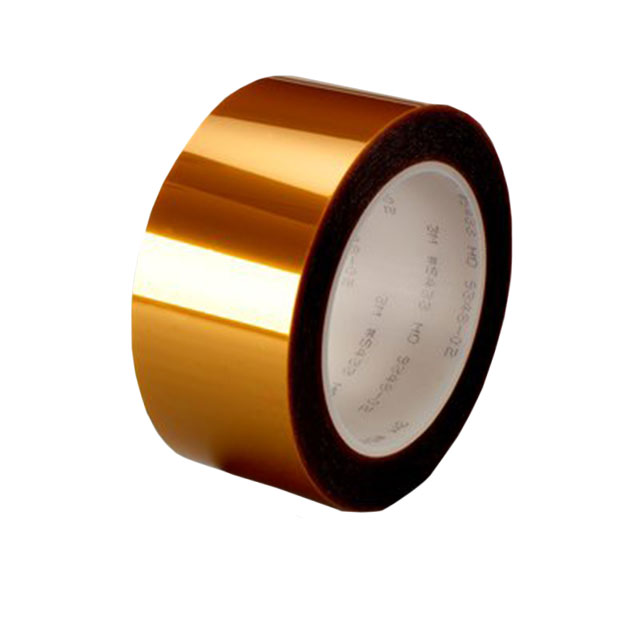

TAPE FILM AMBER 24"X36YDS

Part	Shelf Life	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life Start	Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Backing, Carrier	Tape Type	Width [x]	Width [x]	Color	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Max]	Temperature Range [Min]	Length	Length	Length	Thickness	Thickness	Thickness	Width	Width	Width	Usage	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]
3M Electronic Specialty 5433-24"X36YD	36 Months	69.8 °F	21 °C	Date of Manufacture	Silicone	1.2 mils	0.0012 "	0.03 mm	Polyimide	Film	609.6 mm	24 in	Amber	-99 °F	260 °C	260 °C	-73 °C	32.9 m	108 ft	36 yd	0.071 mm	71.12 microns	0.0028 in
3M Electronic Specialty 5433-5.5"X36YD	36 Months	69.8 °F	21 °C	Date of Manufacture	Silicone	1.2 mils	0.0012 "	0.03 mm	Polyimide	Film			Amber	-99 °F	260 °C	260 °C	-73 °C	32.9 m	108 ft	36 yd	0.071 mm	71.12 microns	0.0028 in	139.7 mm	5.5 in	5 1/2
3M Electronic Specialty 5433 AMBER, 1 IN X 36 YD	36 Months	70 °F	21 °C	Date of Manufacture	Silicone Thermosetting				Polyimide	Masking	25.4 mm	1 in	Amber	-100 °F	260 °C	260 °C	-73 °C	32.9 m	108 ft	36 yd	0.069 mm	2.7 mils	0.0027 in				High Temperature Masking Wave Soldering	1.7 mils	0.0017 in	0.043 mm	1 mils	0.025 mm	0.001 "
3M Electronic Specialty 5433 AMBER, 2 IN X 36 YD	36 Months	70 °F	21 °C	Date of Manufacture	Silicone Thermosetting				Polyimide	Masking	50.8 mm	2 in	Amber	-100 °F	260 °C	260 °C	-73 °C	32.9 m	108 ft	36 yd	0.069 mm	2.7 mils	0.0027 in				High Temperature Masking Wave Soldering	1.7 mils	0.0017 in	0.043 mm	1 mils	0.025 mm	0.001 "
3M Electronic Specialty 5433 AMBER, 12 IN X 36 YD	36 Months	70 °F	21 °C	Date of Manufacture	Silicone Thermosetting				Polyimide	Masking	304.8 mm	12 "	Amber	-100 °F	260 °C	260 °C	-73 °C	32.9 m	108 ft	36 yd	0.069 mm	2.7 mils	0.0027 in				High Temperature Masking Wave Soldering	1.7 mils	0.0017 in	0.043 mm	1 mils	0.025 mm	0.001 "
