3210-14 Series
Manufacturer: CNC Tech
Beta
⌘K

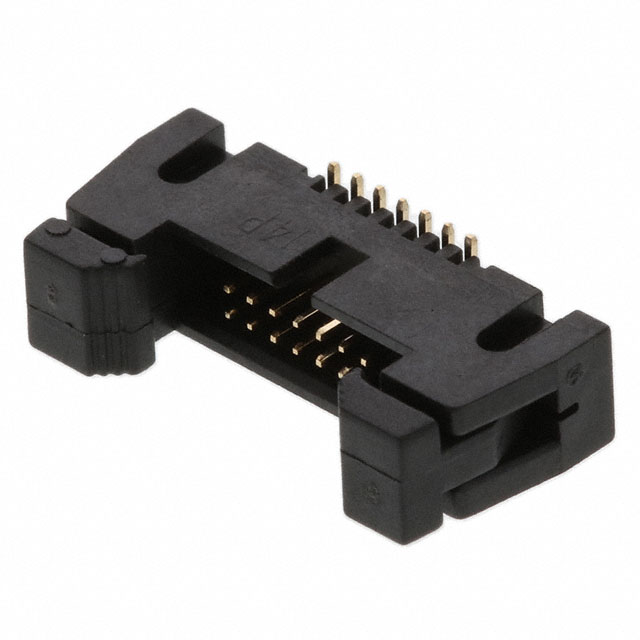

CONN HEADER R/A 14POS 1.27MM
| Part | Contact Shape | Shrouding | Connector Type | Termination | Mounting Type | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Type | Insulation Height | Insulation Height | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Row Spacing - Mating | Row Spacing - Mating | Style | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Material | Number of Rows [custom] | Number of Positions Loaded | Fastening Type | Contact Finish - Mating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CNC Tech | Square | Shrouded - 2 Wall | Header | Solder | Right Angle Through Hole | 14 | 1.27 mm | 0.05 in | Male Pin | 5.6 mm | 0.22 in | Polybutylene Terephthalate (PBT) | -40 C | 105 ░C | 2.4 mm | 0.094 in | 0.05 in | 1.27 mm | Board to Cable/Wire | UL94 V-0 | Flash | Brass | 2 | All | Push-Pull | Gold | |
 CNC Tech | Square | Shrouded - 4 Wall | Header | Solder | Through Hole | 14 | 1.27 mm | 0.05 in | Male Pin | Polyamide (PA6T) Nylon 6T Polyamide (PA9T) Nylon 9T | -40 C | 105 ░C | 2.4 mm | 0.094 in | 0.05 in | 1.27 mm | Board to Cable/Wire | UL94 V-0 | Flash | Brass | 2 | All | Latch Lock/Eject Hooks | Gold | |||
CNC Tech | Square | Shrouded - 2 Wall | Header | Solder | Surface Mount | 14 | 1.27 mm | 0.05 in | Male Pin | Polybutylene Terephthalate (PBT) | -40 C | 105 ░C | 0.05 in | 1.27 mm | Board to Cable/Wire | UL94 V-0 | Flash | Brass | 2 | All | Push-Pull | Gold | Keying Slot | ||||
 CNC Tech | Square | Shrouded - 4 Wall | Header | Solder | Surface Mount | 14 | 1.27 mm | 0.05 in | Male Pin | Polybutylene Terephthalate (PBT) | -40 C | 105 ░C | 0.05 in | 1.27 mm | Board to Cable/Wire | UL94 V-0 | Flash | Brass | 2 | All | Latch Lock/Eject Hooks | Gold | Keying Slot |
