LDH-45B Series

Catalog

LED DRIVER CC BOOST 36-43V 1.05A

Part	Current - Output (Max) [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Mounting Type	Features	Voltage - Input (Min) [Min]	Topology	Voltage - Input (Max) [Max]	Efficiency	Power (Watts)	Approval Agency	Dimming	Termination Style

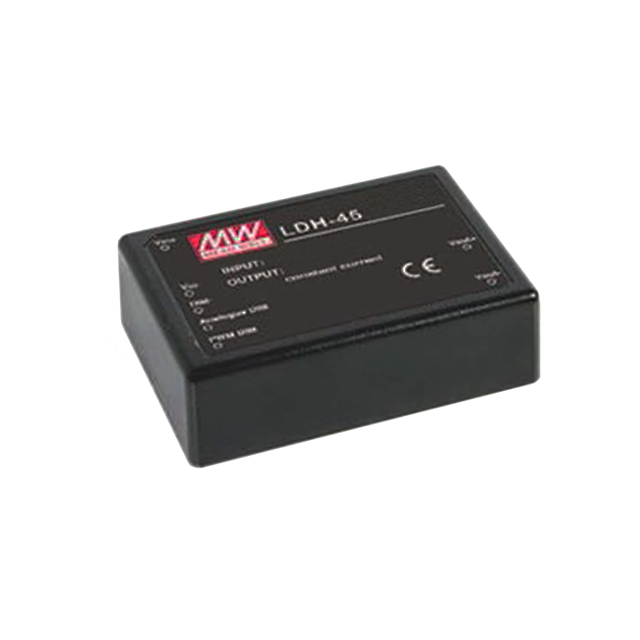

MEAN WELL USA Inc. LDH-45B-1050DA	1.05 A	43 V	36 V	53 mm	2.09 "	0.89 "	22.7 mm	2.95 "	75 mm	7-DIP Module	Constant Current	70 °C	-40 C	1	Through Hole	OVP Remote On/Off SCP UVLO	18 V	Boost	32 V	95 %	45 W	CE	DALI
MEAN WELL USA Inc. LDH-45B-500DA	500 mA			53 mm	2.09 "	0.89 "	22.7 mm	2.95 "	75 mm	7-DIP Module	Constant Current	70 °C	-40 C	1	Through Hole	OVP Remote On/Off SCP UVLO	18 V	Boost	32 V	94 %	43 W	CE	DALI

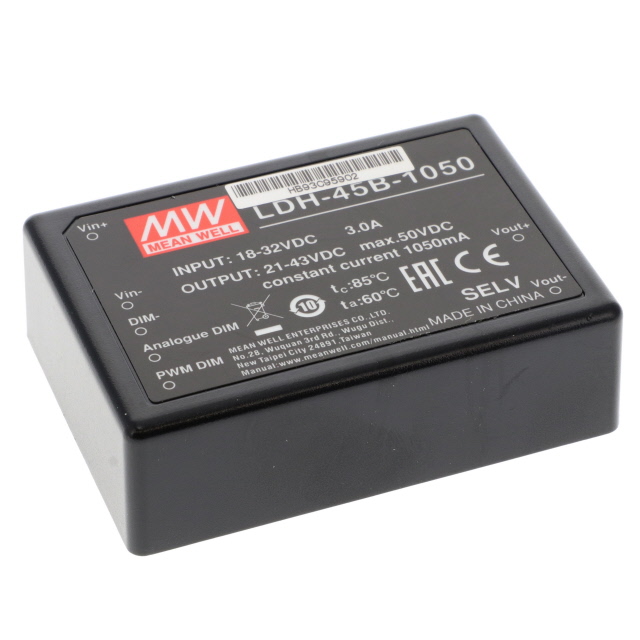

MEAN WELL USA Inc. LDH-45B-1050	1.05 A	43 V	21 V	53 mm	2.09 "	0.89 "	22.7 mm	2.95 "	75 mm	7-DIP Module	Constant Current	70 °C	-40 C	1	Through Hole	OVP Remote On/Off SCP UVLO	18 V	Boost	32 V	95 %	45 W	CE	Analog PWM

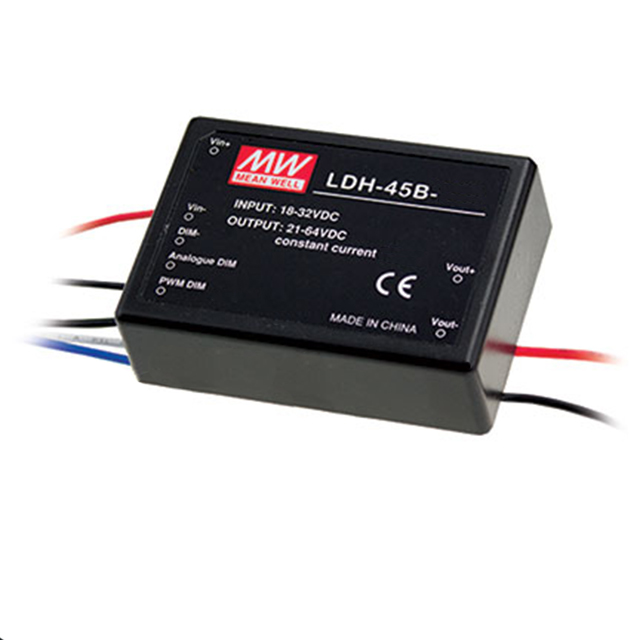

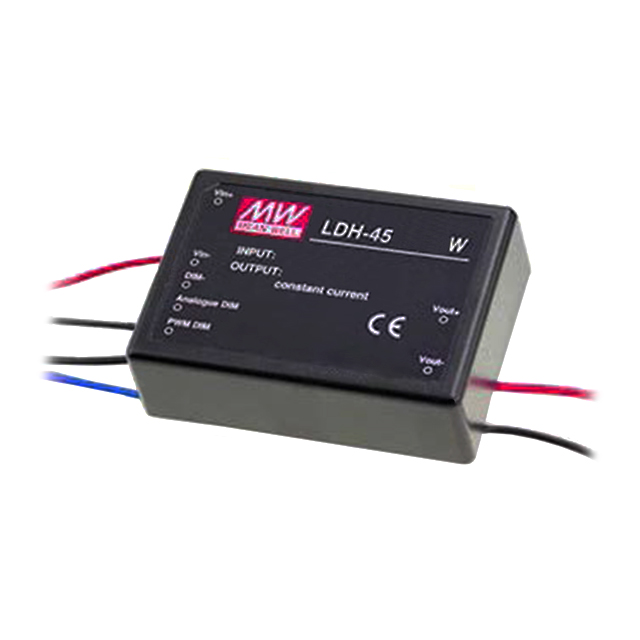

MEAN WELL USA Inc. LDH-45B-1050WDA	1.05 A	43 V	36 V	53.1 mm	2.09 "	0.89 "	22.6 mm	2.95 "	74.9 mm		Constant Current	70 °C	-40 C	1	Chassis Mount	OVP Remote On/Off SCP	18 V	Boost	32 V	95 %	45 W	CE	DALI	Wire Leads
MEAN WELL USA Inc. LDH-45B-500	500 mA	86 V	21 V	53 mm	2.09 "	0.89 "	22.7 mm	2.95 "	75 mm	7-DIP Module	Constant Current	70 °C	-40 C	1	Through Hole	OVP Remote On/Off SCP UVLO	18 V	Boost	32 V	94 %	43 W	CE	Analog PWM
MEAN WELL USA Inc. LDH-45B-700WDA	700 mA	64 V	36 V	53.1 mm	2.09 "	0.89 "	22.6 mm	2.95 "	74.9 mm		Constant Current	70 °C	-40 C	1	Chassis Mount	OVP Remote On/Off SCP	18 V	Boost	32 V	95 %	45 W	CE	DALI	Wire Leads
MEAN WELL USA Inc. LDH-45B-350DA	350 mA	126 V	36 V	53 mm	2.09 "	0.89 "	22.7 mm	2.95 "	75 mm	7-DIP Module	Constant Current	70 °C	-40 C	1	Through Hole	OVP Remote On/Off SCP UVLO	18 V	Boost	32 V	93 %	44 W	CE	DALI
MEAN WELL USA Inc. LDH-45B-700	700 mA	64 V	21 V	53 mm	2.09 "	0.89 "	22.7 mm	2.95 "	75 mm	7-DIP Module	Constant Current	70 °C	-40 C	1	Through Hole	OVP Remote On/Off SCP UVLO	18 V	Boost	32 V	95 %	45 W	CE	Analog PWM
MEAN WELL USA Inc. LDH-45B-700DA	700 mA	64 V	36 V	53 mm	2.09 "	0.89 "	22.7 mm	2.95 "	75 mm	7-DIP Module	Constant Current	70 °C	-40 C	1	Through Hole	OVP Remote On/Off SCP UVLO	18 V	Boost	32 V	95 %	45 W	CE	DALI
MEAN WELL USA Inc. LDH-45B-350WDA	350 mA	126 V	36 V	53.1 mm	2.09 "	0.89 "	22.6 mm	2.95 "	74.9 mm		Constant Current	70 °C	-40 C	1	Chassis Mount	OVP Remote On/Off SCP	18 V	Boost	32 V	93 %	44 W	CE	DALI	Wire Leads
