9329 Series
Manufacturer: Belden Inc.
Beta
⌘K

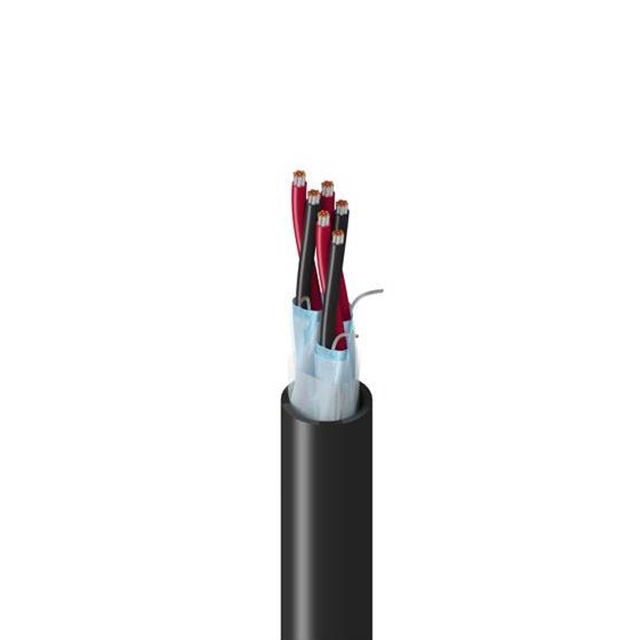

MULTI-PAIR 6COND 22AWG
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Conductor Material | Ratings | Wire Gauge | Features | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Jacket Color | Cable Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Instrumentation | 30 AWG | 7 | 0.042 in | 1.067 mm | 8.66 mm | 0.341 in | Foil | Copper Tinned | UL Style 2464 | 22 AWG | Drain Wire Rip Cord | 6 | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | Chrome | Multi-Pair | ||
Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Instrumentation | 30 AWG | 7 | 0.042 in | 1.067 mm | 8.66 mm | 0.341 in | Foil | Copper Tinned | UL Style 2464 | 22 AWG | Drain Wire Rip Cord | 6 | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | Chrome | Multi-Pair | 152.4 m | 500 ft |
