200AWMSP5 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Actuator Material	Electrical Life	Switch Function	Mounting Type	Current Rating (Amps)	Illumination	Voltage Rating - DC	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage Rating - AC	Ingress Protection	Bushing Thread	Actuator Type	Termination Style	Circuit
E-Switch 200AWMSP5T2A1M7RE	Brass Chrome Plated	50000 Cycles	On-Off-Mom	Right Angle Through Hole Vertical	0.4 VA	Non-Illuminated	20 V	6.1 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	20 V	IP67 - Dust Tight Waterproof	Unthreaded	Standard Round	PC Pin	SPDT
E-Switch 200AWMSP5T1A1VS2RE	Brass Chrome Plated	50000 Cycles	On-Off-Mom	Through Hole	0.4 VA	Non-Illuminated	20 V	10.16 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	20 V	IP67 - Dust Tight Waterproof	Unthreaded	Standard Round	PC Pin	SPDT

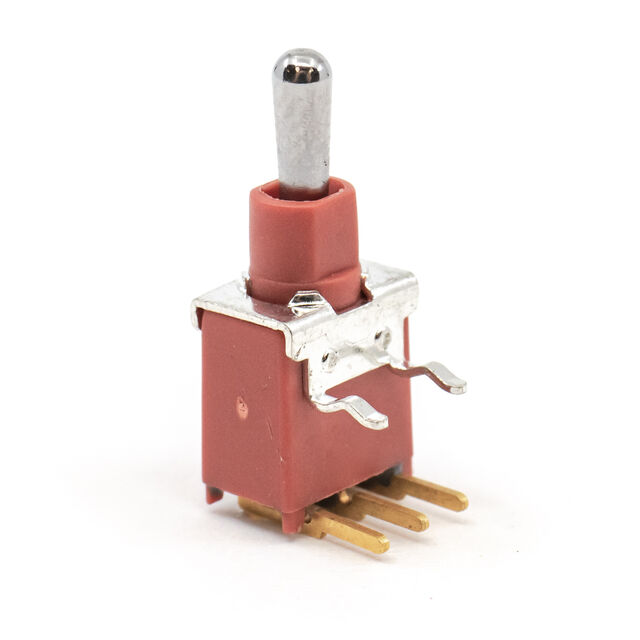

E-Switch 200AWMSP5T2A1M61RE	Brass Chrome Plated	50000 Cycles	On-Off-Mom	Right Angle Through Hole	0.4 VA	Non-Illuminated	20 V	6.1 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	20 V	IP67 - Dust Tight Waterproof	Unthreaded	Standard Round	PC Pin	SPDT
E-Switch 200AWMSP5T2A1M6RE	Brass Chrome Plated	50000 Cycles	On-Off-Mom	Right Angle Through Hole	0.4 VA	Non-Illuminated	20 V	6.1 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	20 V	IP67 - Dust Tight Waterproof	Unthreaded	Standard Round	PC Pin	SPDT
E-Switch 200AWMSP5T2A1M2QE1000GF	Brass Chrome Plated	50000 Cycles	On-Off-Mom	Through Hole	3 A	Non-Illuminated	28 V	6.1 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	120 V	IP67 - Dust Tight Waterproof	Unthreaded	Standard Round	PC Pin	SPDT
