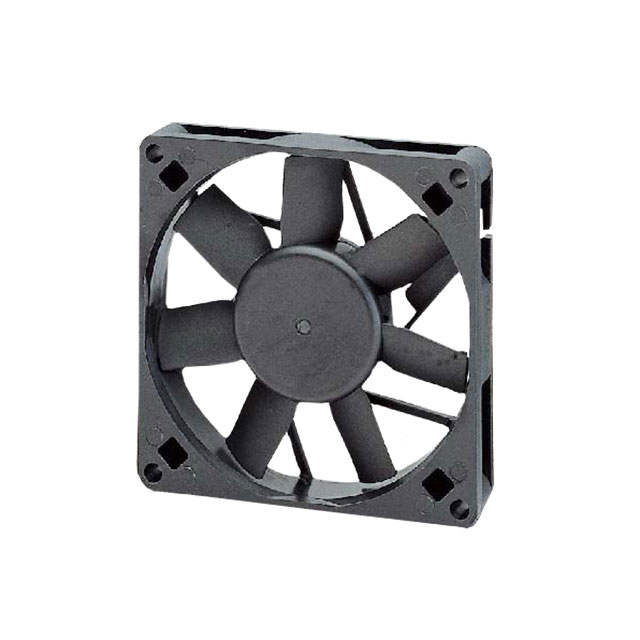

FAD1-08015 Series

Manufacturer: Qualtek

Catalog

FAN AXIAL 80X15MM 24VDC WIRE

Part	Air Flow	Air Flow	Material - Blade	Material - Frame	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Width [y]	Voltage - Rated	Weight	Weight	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Noise	Bearing Type	Termination	RPM	Fan Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]
Qualtek FAD1-08015DHMW12	0.61 mł/min	21.8 CFM	Plastic	Plastic	40 mA	26.4 VDC	21.6 VDC	0.078 in H2O	19.4 Pa	15 mm	24 VDC	62.14 g	0.137 lb	80 mm	80 mm	CE cURus TUV	24.9 dB(A)	Hydrodynamic	2 Wire Leads	2440 RPM	Tubeaxial	960 mW	70 °C	-10 °C
Qualtek FAD1-08015BBMW12	0.61 mł/min	21.8 CFM						0.078 in H2O	19.4 Pa	15 mm	5 V	62.14 g	0.137 lb	80 mm	80 mm	CE cURus TUV	24.9 dB(A)	Ball	2 Wire Leads	2440 RPM	Tubeaxial	0.65 W	70 °C	-10 °C
Qualtek FAD1-08015BHMW12	0.61 mł/min	21.8 CFM	Plastic	Plastic		5.5 V	4.5 V	0.078 in H2O	19.4 Pa	15 mm	5 V	62.14 g	0.137 lb	80 mm	80 mm	CE cURus TUV	24.9 dB(A)	Hydrodynamic	2 Wire Leads	2440 RPM	Tubeaxial	0.65 W	70 °C	-10 °C
Qualtek FAD1-08015DBMW12	0.61 mł/min	21.8 CFM	Plastic	Plastic		26.4 VDC	21.6 VDC	0.078 in H2O	19.4 Pa	15 mm	24 VDC	62.14 g	0.137 lb	80 mm	80 mm	CE cURus TUV	24.9 dB(A)	Ball	2 Wire Leads	2440 RPM	Tubeaxial	960 mW	70 °C	-10 °C
Qualtek FAD1-08015DBHW12	0.832 mł/min	29.7 CFM	Plastic	Plastic		26.4 VDC	21.6 VDC	0.122 in H2O	30.4 Pa	15 mm	24 VDC	62.14 g	0.137 lb	80 mm	80 mm	CE cURus TUV	34.4 dB(A)	Ball	2 Wire Leads	3200 RPM	Tubeaxial	1.92 W	70 °C	-10 °C
Qualtek FAD1-08015CBLW12	0.512 mł/min	18.3 CFM	Plastic	Plastic	30 mA	13.2 VDC	10.8 VDC	0.052 in H2O	12.9 Pa	15 mm	12 VDC	62.14 g	0.137 lb	80 mm	80 mm	CE cURus TUV	18.8 dB(A)	Ball	2 Wire Leads	2000 RPM	Tubeaxial	0.36 W	70 °C	-10 °C
