JN2DS10S Series

Catalog

CONN PLG HSG FMALE 10POS INLINE

Part	Shell Size - Insert	Connector Type	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Shell Finish	Features	Contact Type	Housing Color	Contact Size	Fastening Type	Ingress Protection	Contact Shape	Shell Material	Number of Positions	Type	Mounting Type	Note	Orientation	Color	Backshell Material, Plating	Voltage Rating	Termination	Current Rating (Amps)	Contact Material	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating
JAE Electronics JN2DS10SLN-R	S	Plug Housing	Synthetic Resin	-20 ░C	100 °C	Unshielded	Zinc	Backshell Coupling Nut	Crimp	Black	22	Push-Twist	IP67 - Dust Tight Waterproof	Circular	Zinc Alloy	10	For Female Sockets	Free Hanging (In-Line)	Contacts Not Included	N (Normal)
JAE Electronics JN2DS10SL2-R	S	Plug Housing	Synthetic Resin	-20 ░C	100 °C	Unshielded	Zinc	Backshell Coupling Nut	Crimp	Black	22	Push-Twist	IP67 - Dust Tight Waterproof	Circular	Zinc Alloy	10	For Female Sockets	Free Hanging (In-Line)	Contacts Not Included	N (Normal)
JAE Electronics JN2DS10SL3-R	S	Plug Housing	Synthetic Resin	-20 ░C	100 °C	Unshielded	Zinc	Backshell Coupling Nut	Crimp	Black	22	Push-Twist	IP67 - Dust Tight Waterproof	Circular	Zinc Alloy	10	For Female Sockets	Free Hanging (In-Line)	Contacts Not Included	N (Normal)

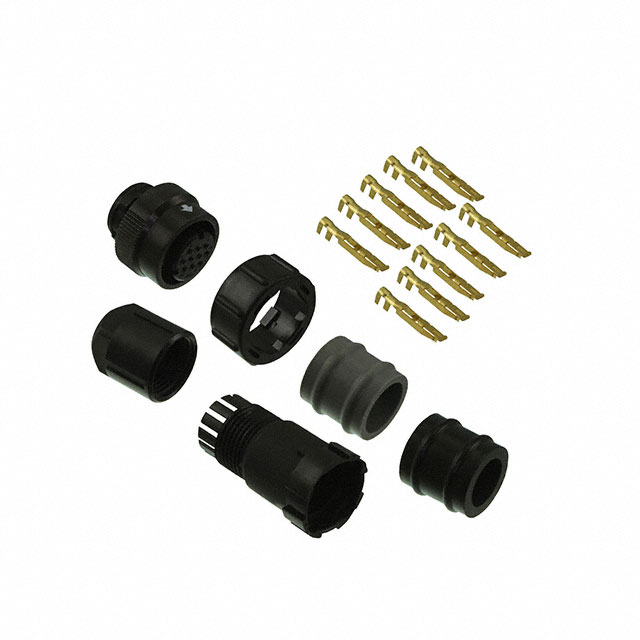

JAE Electronics JN2DS10SLK-R	S	Plug Female Sockets	Synthetic Resin	-20 ░C	100 °C			Backshell Coupling Nut				Push-Twist	IP67 - Dust Tight Waterproof		Synthetic Resin	10		Free Hanging (In-Line)		N (Normal)	Black	Synthetic Resin	200 VAC	Crimp	3 A	Copper Alloy	Plastic	3.9 µin	0.099 µm	Gold

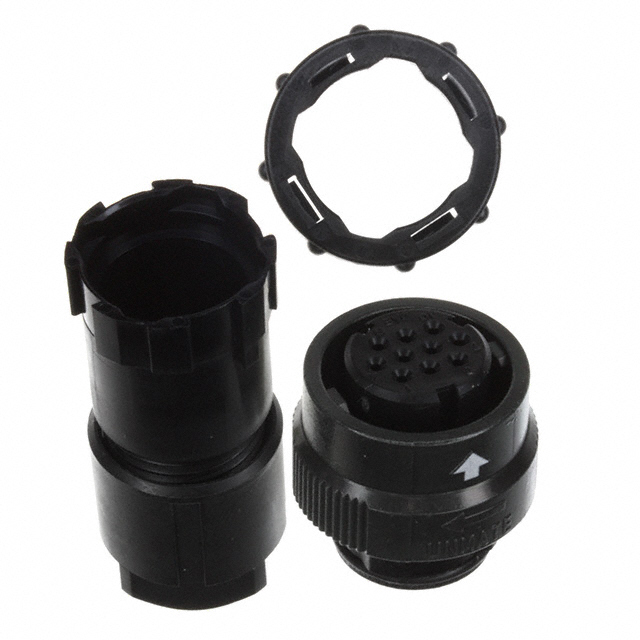

JAE Electronics JN2DS10SL1-R	S	Plug Housing	Synthetic Resin	-20 ░C	100 °C	Unshielded	Zinc	Backshell Coupling Nut	Crimp	Black	22	Push-Twist	IP67 - Dust Tight Waterproof	Circular	Zinc Alloy	10	For Female Sockets	Free Hanging (In-Line)	Contacts Not Included	N (Normal)
