PMT-24 Series

Catalog

AC/DC CONVERTER 24V 35W

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Isolation	Power (Watts)	Approval Agency	Number of Outputs	Features	Type	Voltage - Output 1	Mounting Type	Efficiency	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]
Delta Electronics PMT-24V35W1AG	ITE (Commercial)	70 °C	-10 °C	3.86 "	98 mm	98 mm	3.86 "	38 mm	1.5 in	3000 V	35 W	CB CCC CE cURus TUV	1	Adjustable Output Universal Input	Enclosed	24 V	Chassis Mount	85 %	1.46 A

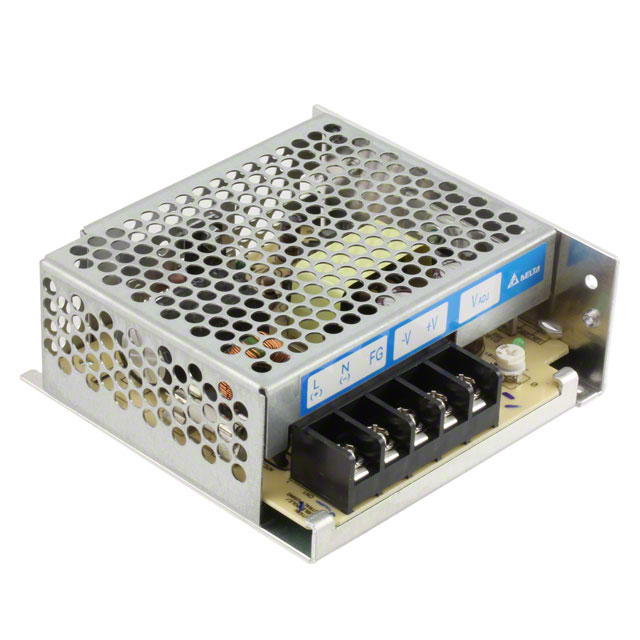

Delta Electronics PMT-24V50W1AA	ITE (Commercial)	70 °C	-10 °C	3.86 "	98 mm	98 mm	3.86 "	38 mm	1.5 in	3000 V	50 W	CB CCC CE cURus TUVgs	1	Adjustable Output Universal Input	Enclosed	24 V	Chassis Mount	86 %	2.09 A
Delta Electronics PMT-24V50W1AG	ITE (Commercial)	70 °C	-10 °C	3.86 "	98 mm	98 mm	3.86 "	38 mm	1.5 in	3000 V	50 W	CB CCC CE cURus TUV	1	Adjustable Output Universal Input	Enclosed	24 V	Chassis Mount	86 %	2.09 A

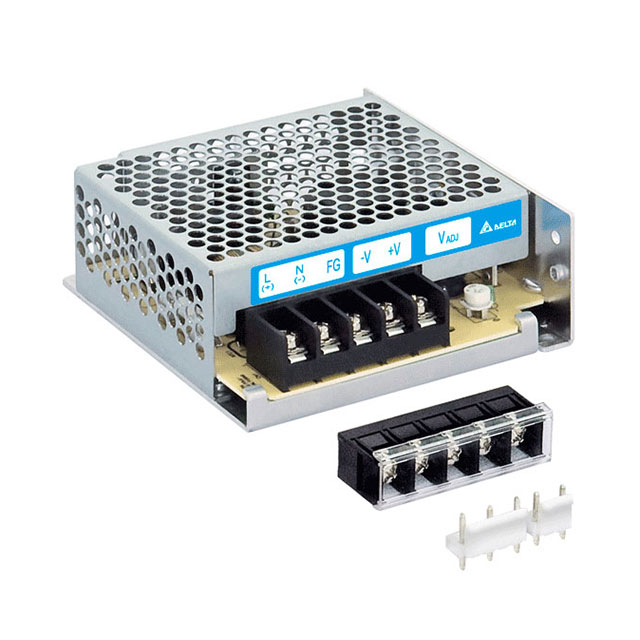

Delta Electronics PMT-24V35W1AH	ITE (Commercial)	70 °C	-10 °C	3.86 "	98 mm	98 mm	3.86 "	38 mm	1.5 in	3000 V	35 W	CB CCC CE cURus TUV	1	Adjustable Output Universal Input	Enclosed	24 V	Chassis Mount	85 %	1.46 A
Delta Electronics PMT-24V100W1AH	ITE (Commercial)	70 °C	-10 °C		6.22 " 158 mm	3.82 " 97 mm		1.5 in 38 mm		3000 V	100 W	CB CCC CE cURus TUV	1	Adjustable Output	Enclosed	24 V	Chassis Mount	86 %	4.5 A	90 VAC 180 VAC	132 VAC 264 VAC

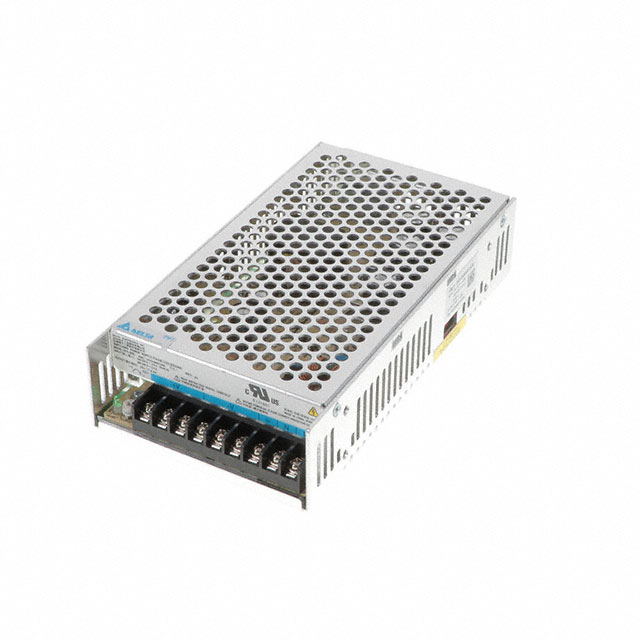

Delta Electronics PMT-24V200W1AM	ITE (Commercial)	60 °C	-10 °C	4.53 in	215 mm	115 mm	8.46 in	50 mm	1.97 "	3000 V	200 Watts	CB cURus	1	Adjustable Output	Enclosed	24 V	Chassis Mount	88.5 %	8.8 A	90 VAC 180 VAC	132 VAC 264 VAC
