OSTTB03 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 3POS TOP ENT 5.08MM PCB
| Part | Screw Thread | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Torque - Screw | Torque - Screw | Clamp Material - Plating [custom] | Screw Material - Plating | Positions Per Level | Current | Mating Orientation | Color | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Features | Pitch | Pitch | Wire Termination | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

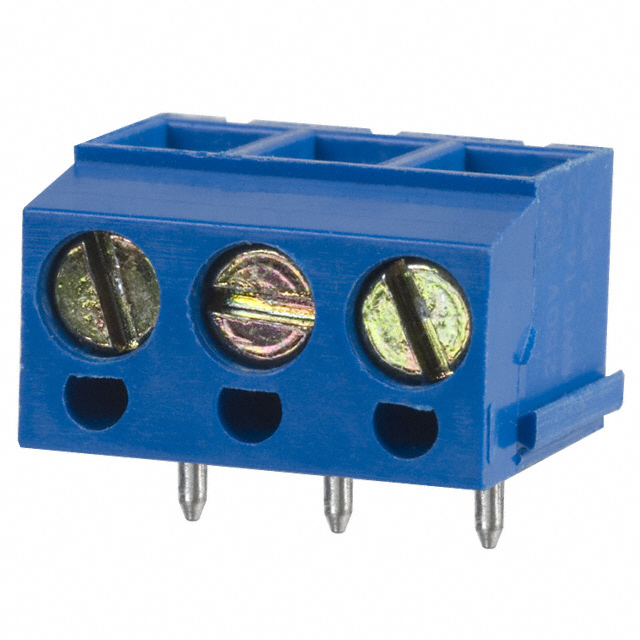

 On Shore Technology Inc. | M3 | Thermoplastic | -30 ░C | 105 ░C | Tin Plated | 3.5 Lb-In | 0.4 Nm | Stainless Steel | Steel - Zinc Plated | 3 | 15 A | Vertical with Board | Blue | Through Hole | 14 AWG | 22 AWG | Interlocking (Side) | 5.08 mm | 0.2 in | Screw - Leaf Spring Wire Guard | 1 |

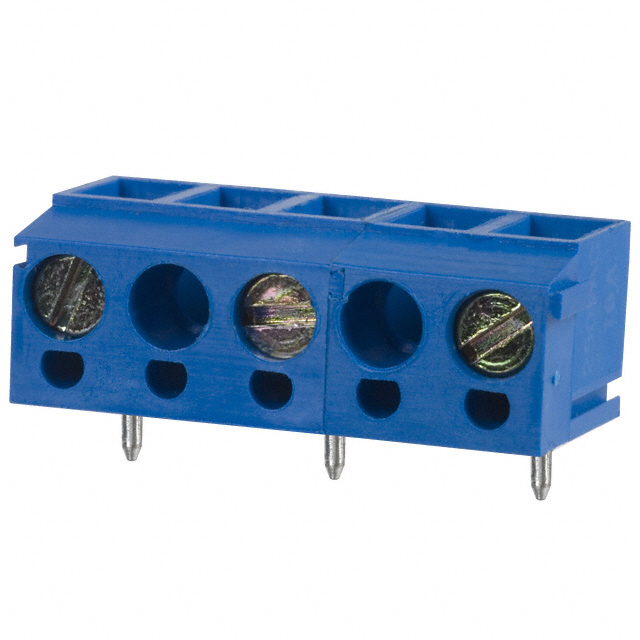

 On Shore Technology Inc. | M3 | Polyamide (PA) Nylon | -33 °C | 120 °C | Brass | 3.5 Lb-In | 0.4 Nm | Stainless Steel | Steel Galvanized - Chromate Plated | 3 | 16 A | Vertical with Board | Through Hole | 14 AWG | 22 AWG | Interlocking (Side) | 10 mm | 0.394 in | Screw | 1 |
